Electric Forklift · CPE-18 Series
CPE-18
Electric Forklift
The CPE-18 is a 1,800 kg (4,000 lb) three-wheel electric counterbalance forklift for warehouses, factories, cold storage and pallet handling. The three-wheel chassis turns in a 1,770 mm radius — tighter than a four-wheel truck — for narrow aisles and end-of-rack work. It runs on a 60V system with a 6 kW AC drive motor, a 6 kW AC hydraulic motor, and a 60V / 210 Ah battery on a 3 m mast. Overall width is 1,080 mm. Service weight is 2,800 kg. HONGLI ships it factory-direct from Tai'an, Shandong: a one-unit minimum order, 15–30 day lead time, a 12-month warranty, and CE on request. Request full specs or a quote below.

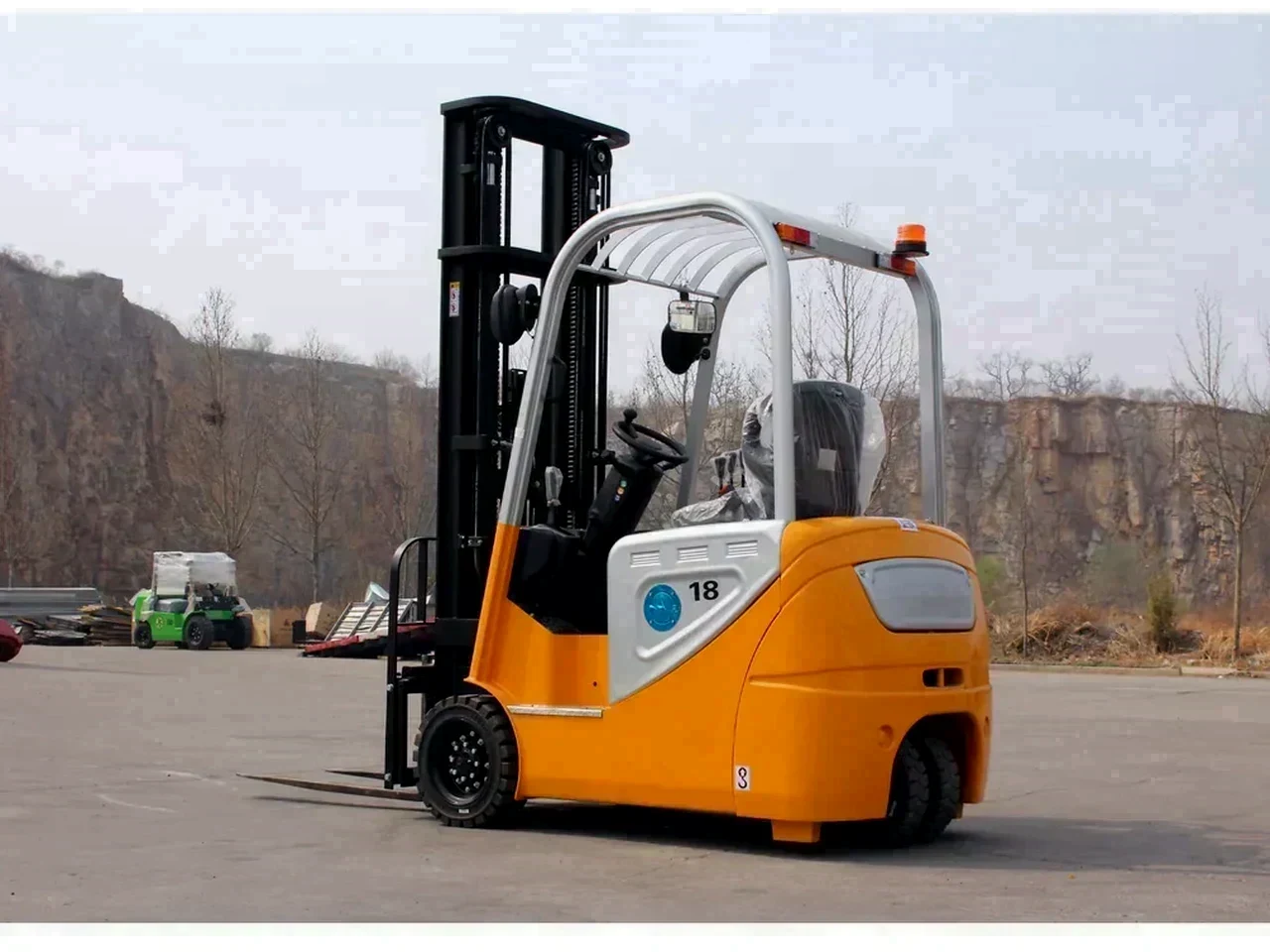

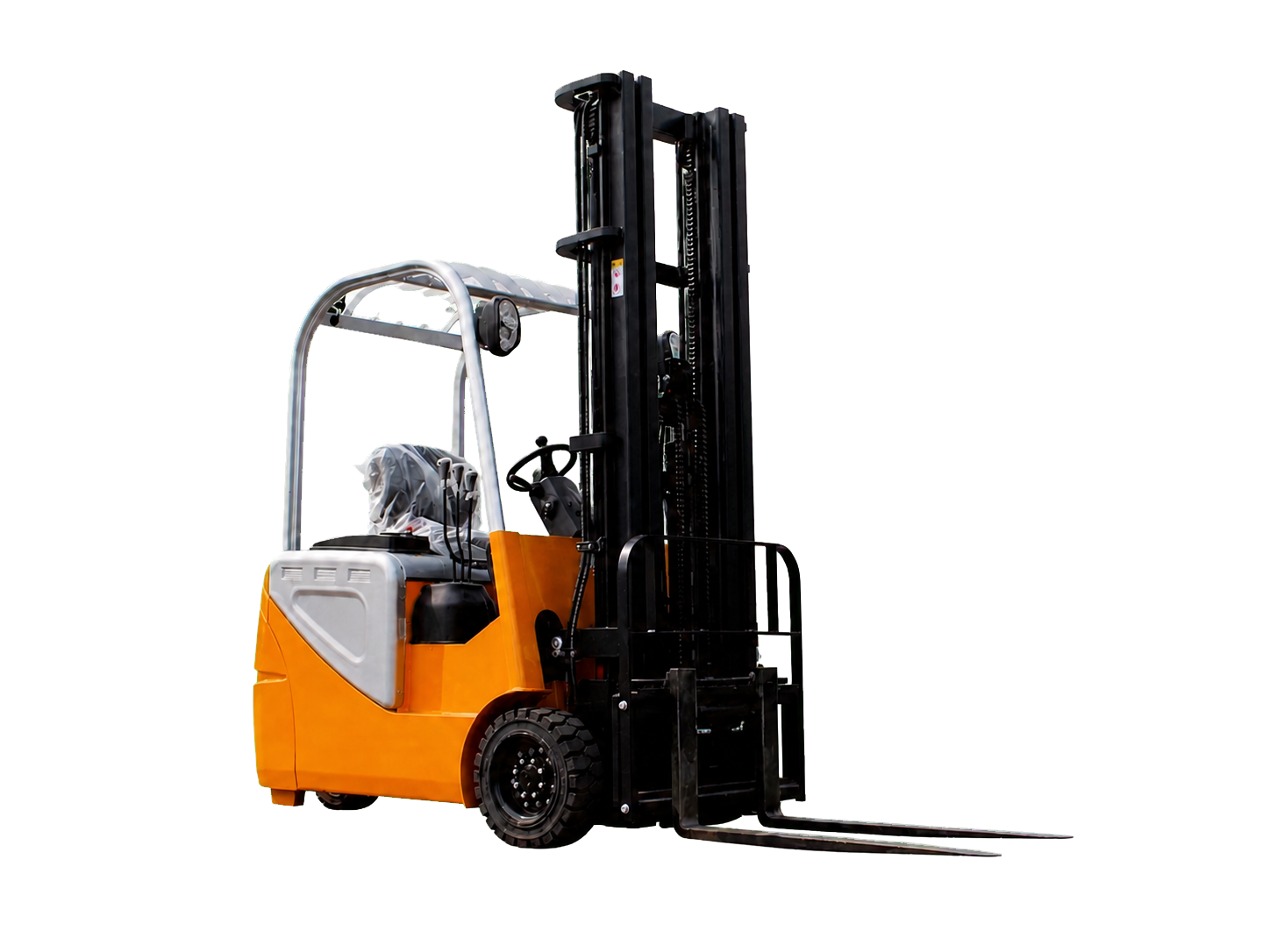

CPE-18 · Product Images
Capacity
1800kg
Power
Electric
Height
3000 mm
Weight
2800 kg
Technical Specifications
CPE-18 Specification Table
Rated Capacity1800kg
Lift Height3000 mm
PowerElectric
Service Weight2800 kg
// Basic Performance
Product Name
CPE-18 Electric Forklift
Model
CPE-18
Category
Electric Forklift
Rated Capacity
1800 kg (500 mm load centre)
Lift Height
3000 mm
Fork Size
40 × 100 × 1070 mm (T×W×L)
Fork Length
1070 mm
Turning Radius
1770 mm
Gradeability
18% laden
// Power & Battery
Power Type
Electric
Drive Motor
6 kW AC
Hydraulic Motor
6 kW AC
Battery
60V / 210Ah (battery weight 330 kg)
Charger
Available on request
// Dimensions & Weight
Overall Length
1955 mm (excl. fork)
Overall Width
1080 mm
Overall Height
2025 mm (mast retracted; 4010 mm extended)
Service Weight
2800 kg
// Tyre & Brake
Tire
Front 18×7-10 / rear 15×4.5-8 (solid)
Brake Type
Available on request
// Export & Documents
MOQ
1 unit
Lead Time
15-30 days
Packing Method
Available on request
Container Loading Quantity
Available on request
Warranty
12 months
Certificate
Available on request
Manual
Available on request
Spare Parts List
Available on request

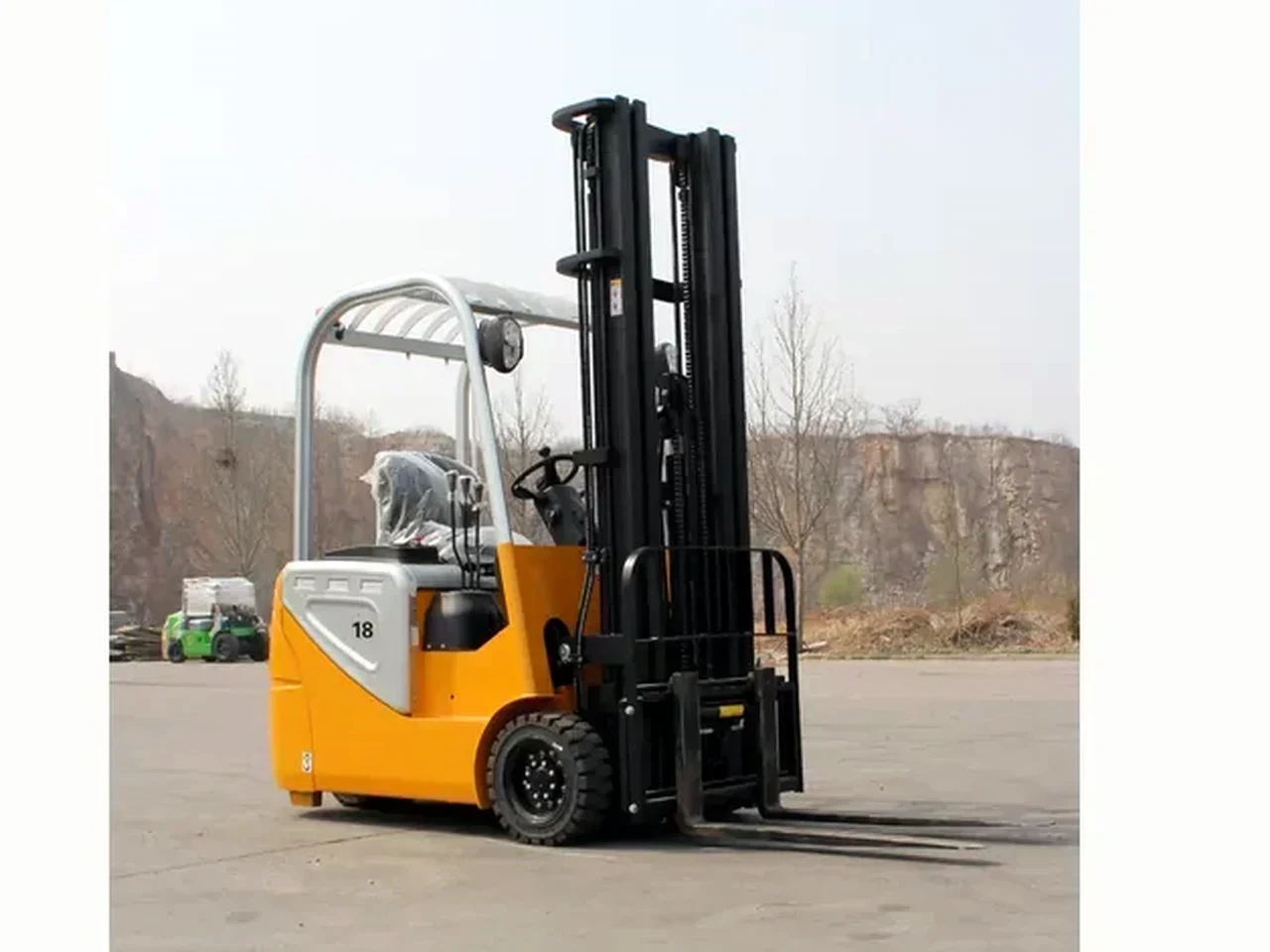

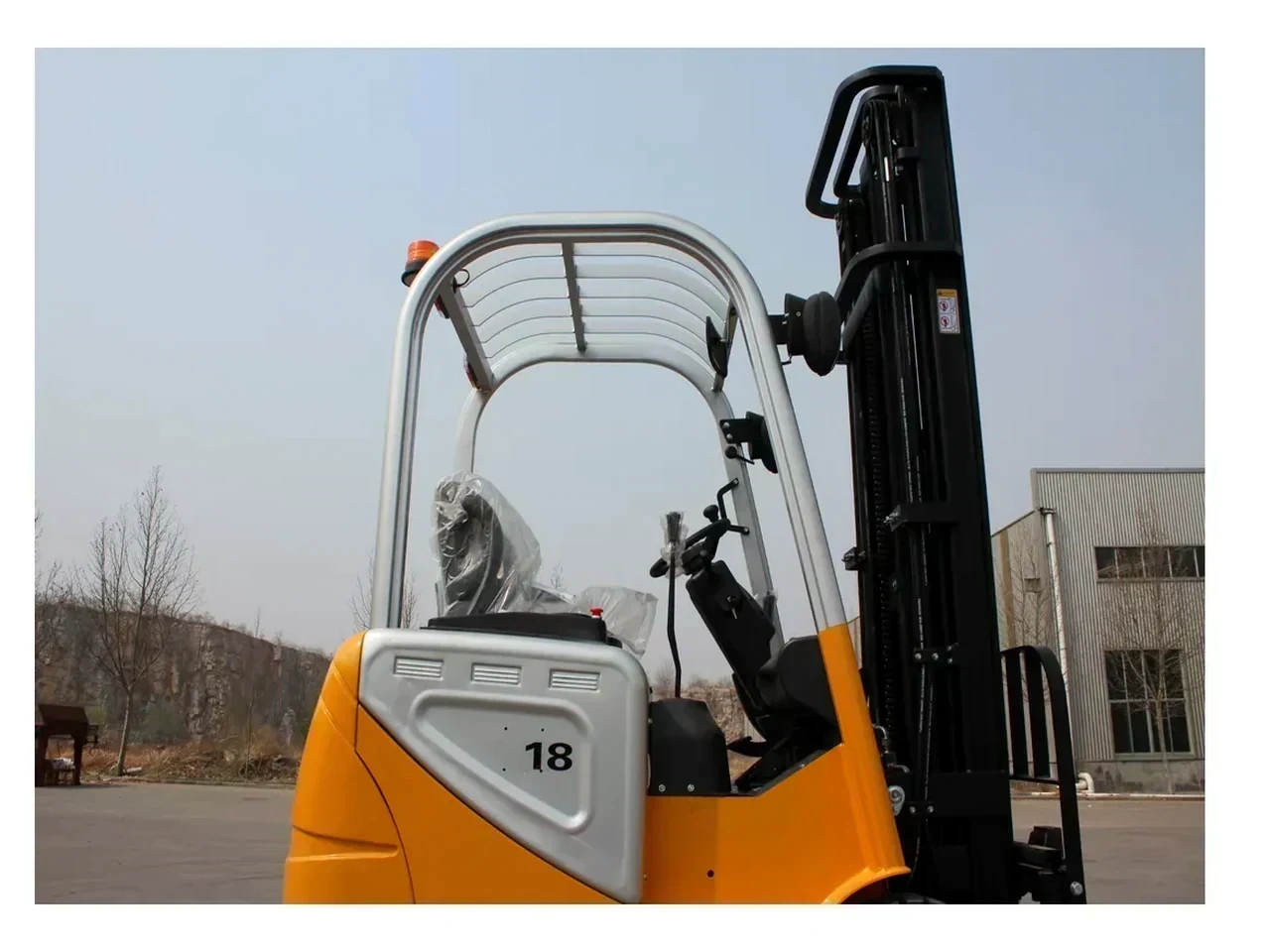

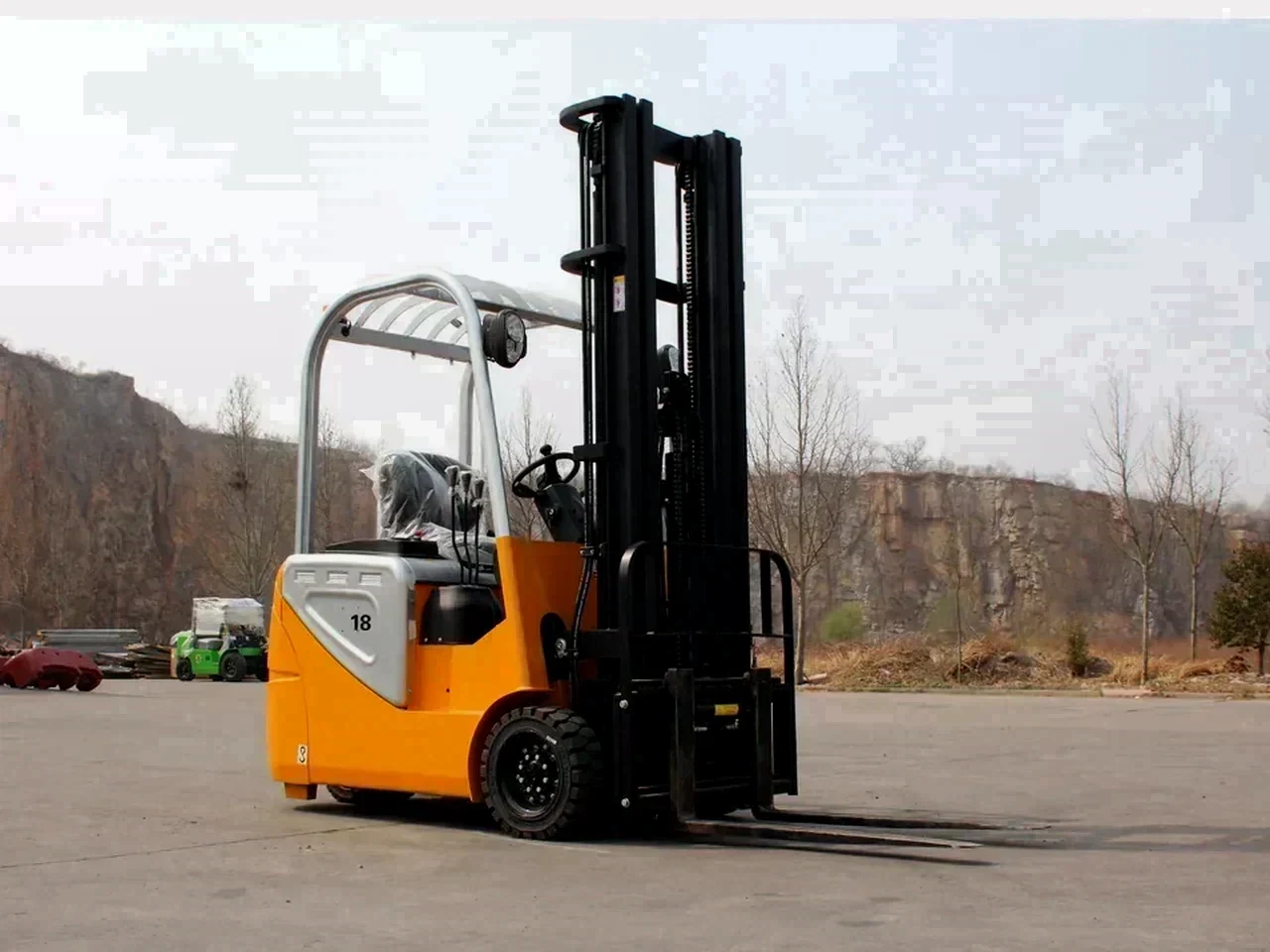

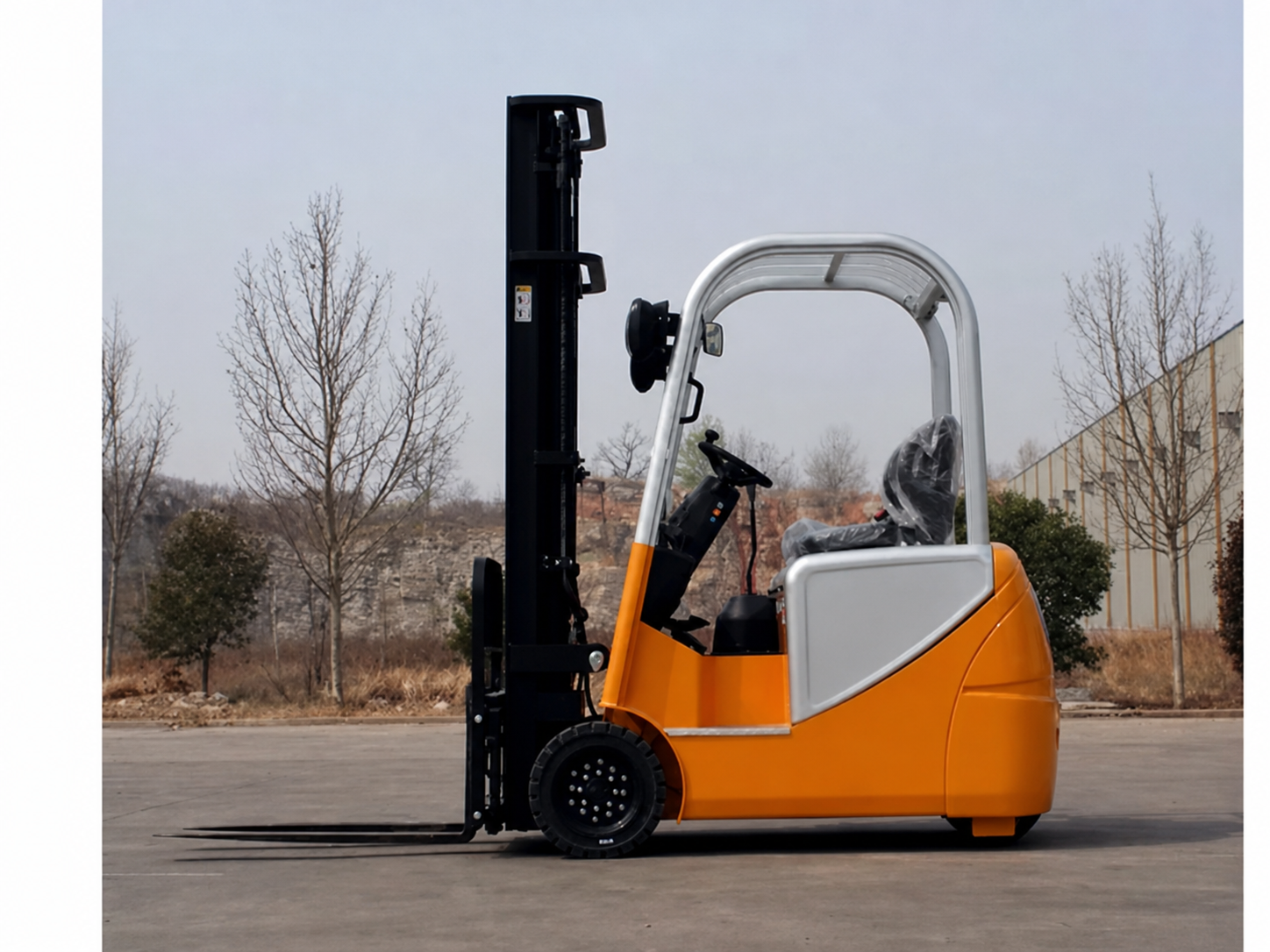

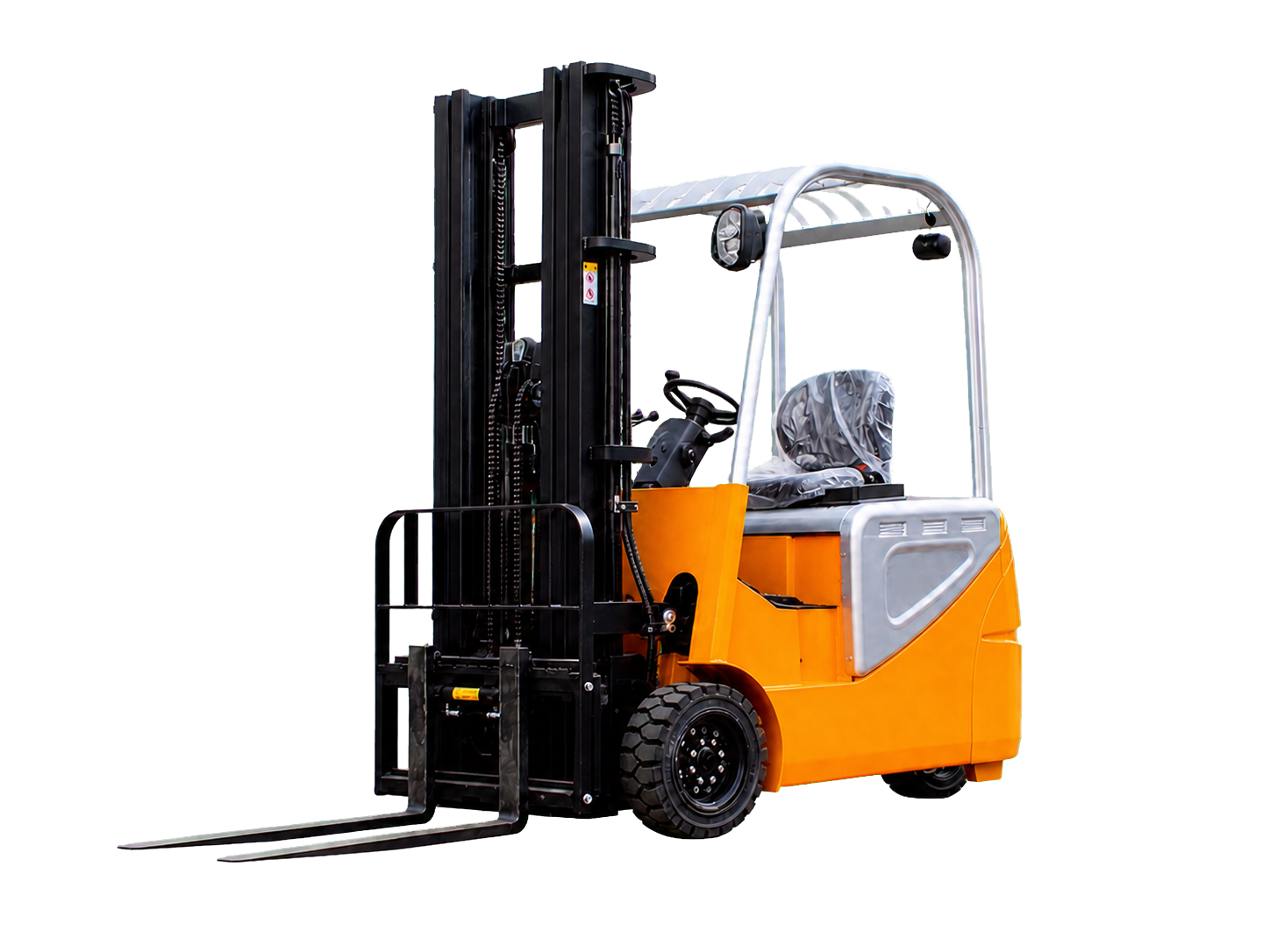

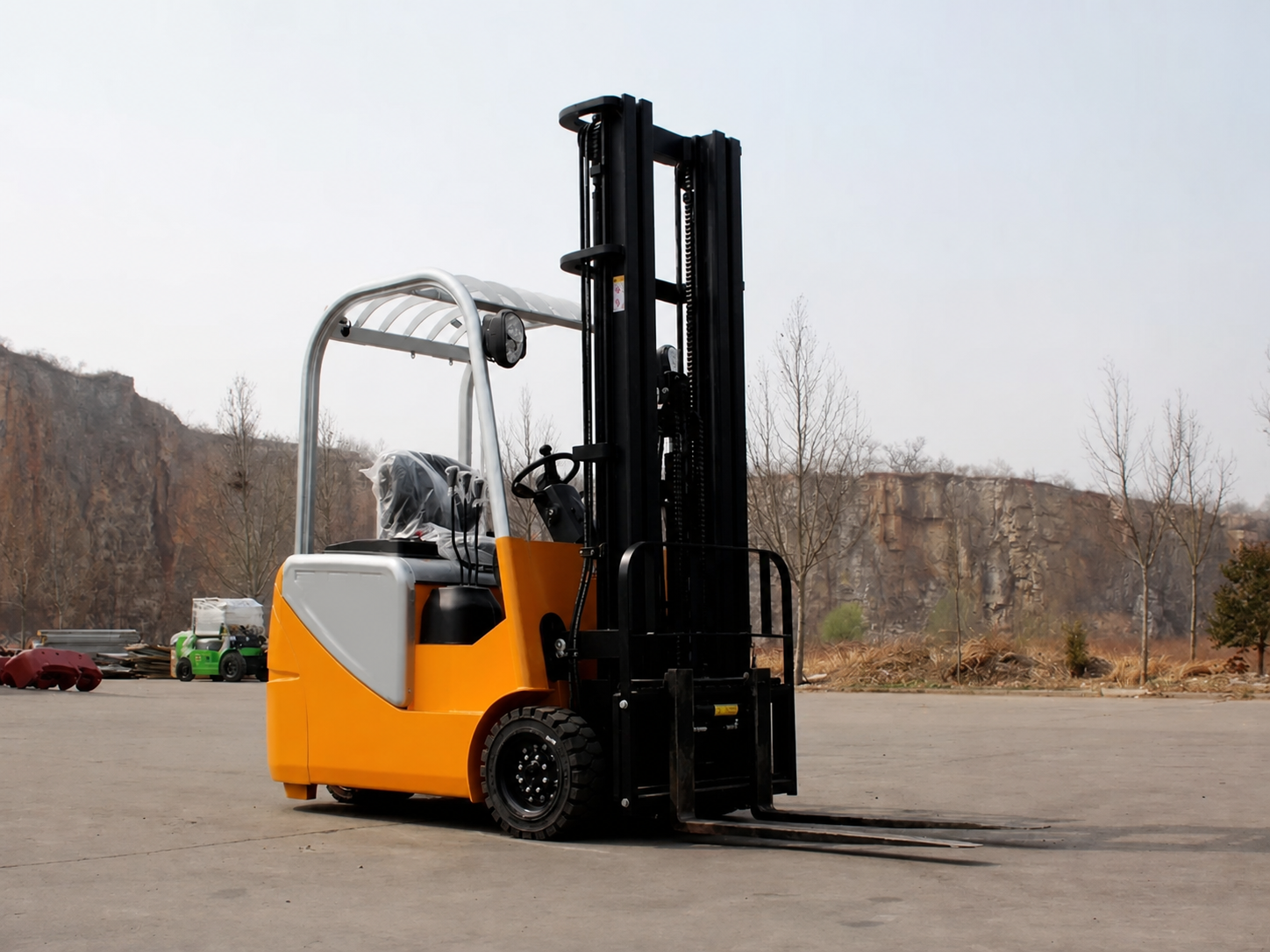

Product Gallery
Take Action
Find the Right Electric Forklift for Your Operation
Send the working conditions, required configuration, quantity and destination port for a model-specific export quotation.
