Electric Forklift · CPE-20 Dual Drive Series

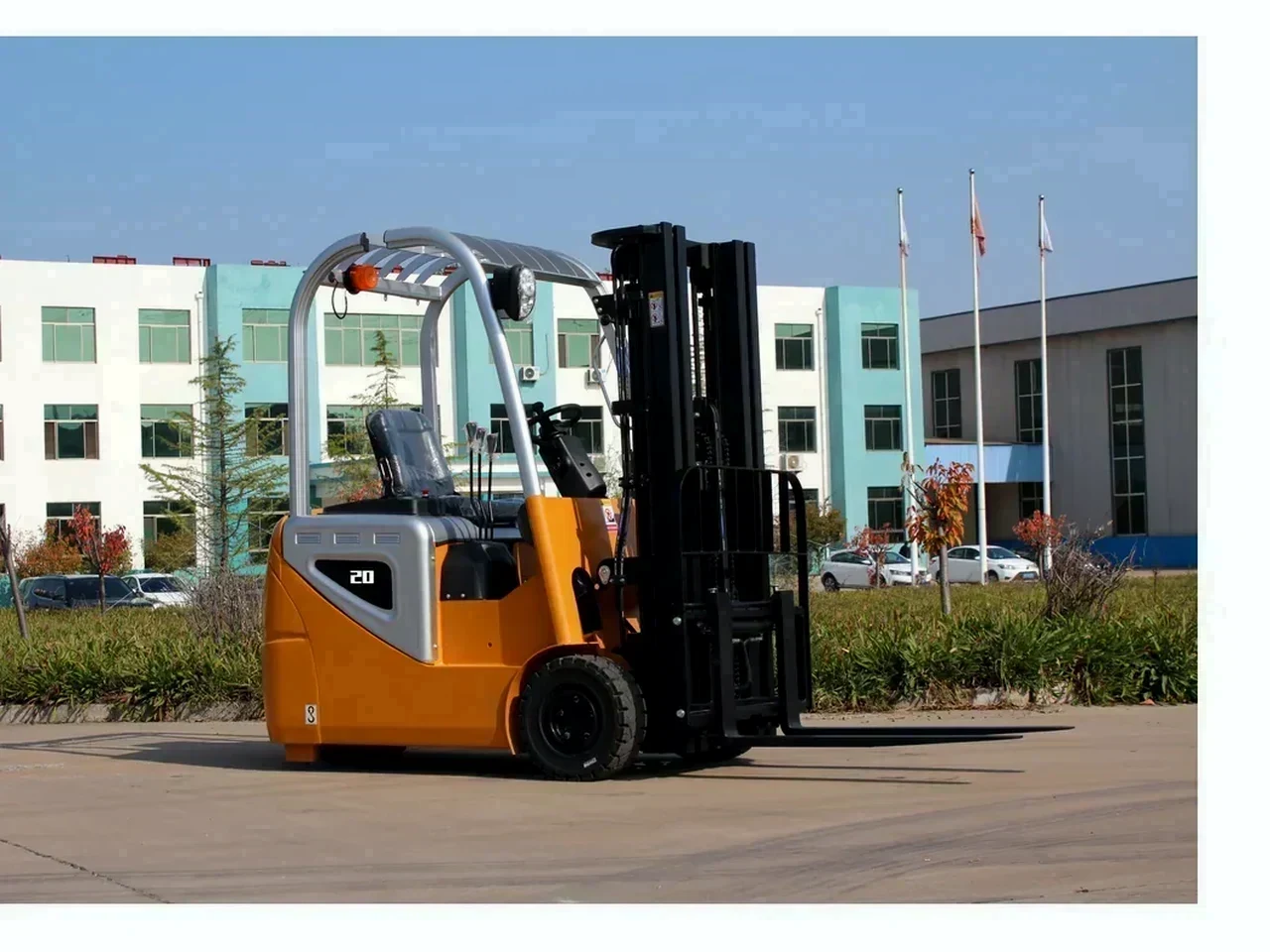

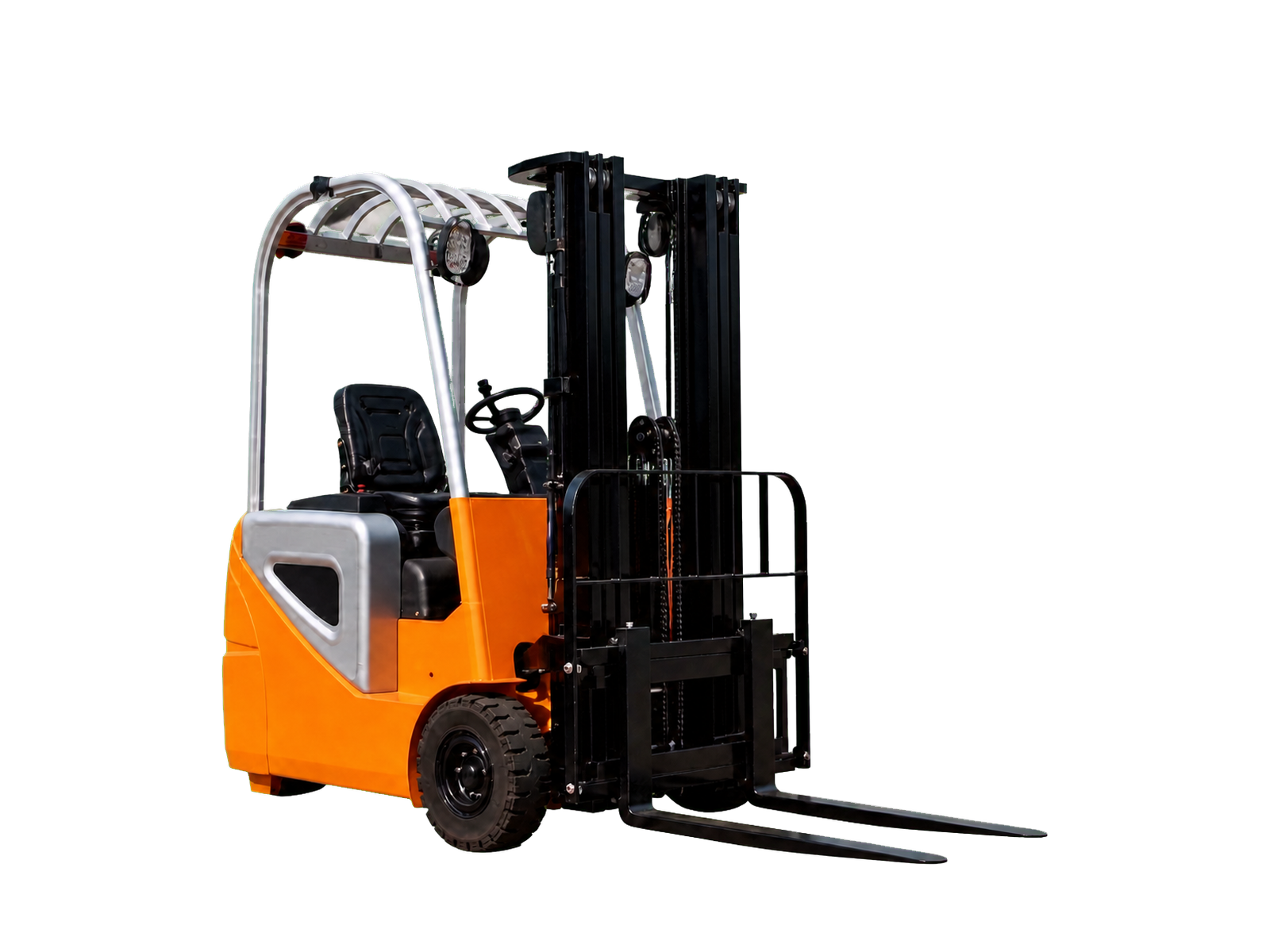

CPE-20 Dual Drive
Electric Forklift
The CPE-20 Dual Drive is a 2,000 kg (4,400 lb) three-wheel electric counterbalance forklift for warehouses, factories, cold storage and pallet handling. Two 4.8 kW AC drive motors with a CURTIS controller give it independent front-wheel drive and a 1,660 mm turning radius — the tightest in the CPE range. It runs on a 48V / 600 Ah battery with an 11 kW AC hydraulic motor on a 3 m mast. Overall width is 1,160 mm. Service weight is 3,100 kg. HONGLI ships it factory-direct from Tai'an, Shandong: a one-unit minimum order, 15–30 day lead time, a 12-month warranty, and CE on request. Request full specs or a quote below.
CPE-20 Dual Drive · Product Images
Capacity
2000kg
Power
Electric
Height
3000 mm
Weight
3100 kg
Technical Specifications
CPE-20 Dual Drive Specification Table
// Basic Performance
Product Name
CPE-20 Dual Drive Electric Forklift
Model
CPE-20 Dual Drive
Category
Electric Forklift
Rated Capacity
2000 kg (500 mm load centre)
Lift Height
3000 mm
Fork Size
40 × 100 × 1070 mm (T×W×L)
Fork Length
1070 mm
Turning Radius
1660 mm
Gradeability
15% laden
// Power & Battery
Power Type
Electric
Drive Motor
4.8 kW × 2 AC (CURTIS control)
Hydraulic Motor
11 kW AC
Battery
48V / 600Ah
Charger
Available on request
// Dimensions & Weight
Overall Length
2060 mm (excl. fork)
Overall Width
1160 mm
Overall Height
2020 mm (mast retracted; 4010 mm extended)
Service Weight
3100 kg
// Tyre & Brake
Tire
Front 200/50-10 / rear 15×4.5-8 (solid)
Brake Type
Available on request
// Export & Documents
MOQ
1 unit
Lead Time
15-30 days
Packing Method
Available on request
Container Loading Quantity
Available on request
Warranty
12 months
Certificate
Available on request
Manual
Available on request
Spare Parts List
Available on request

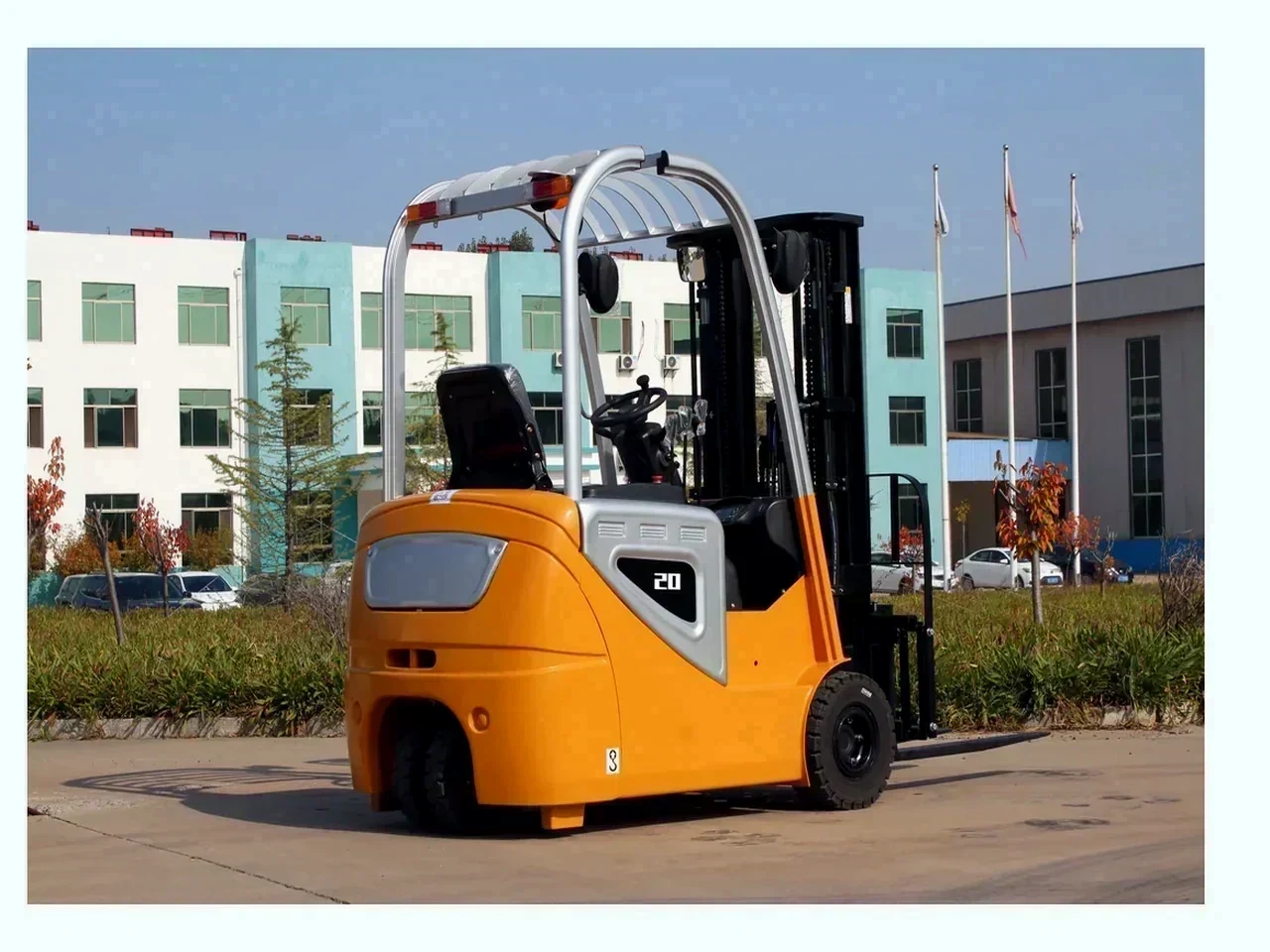

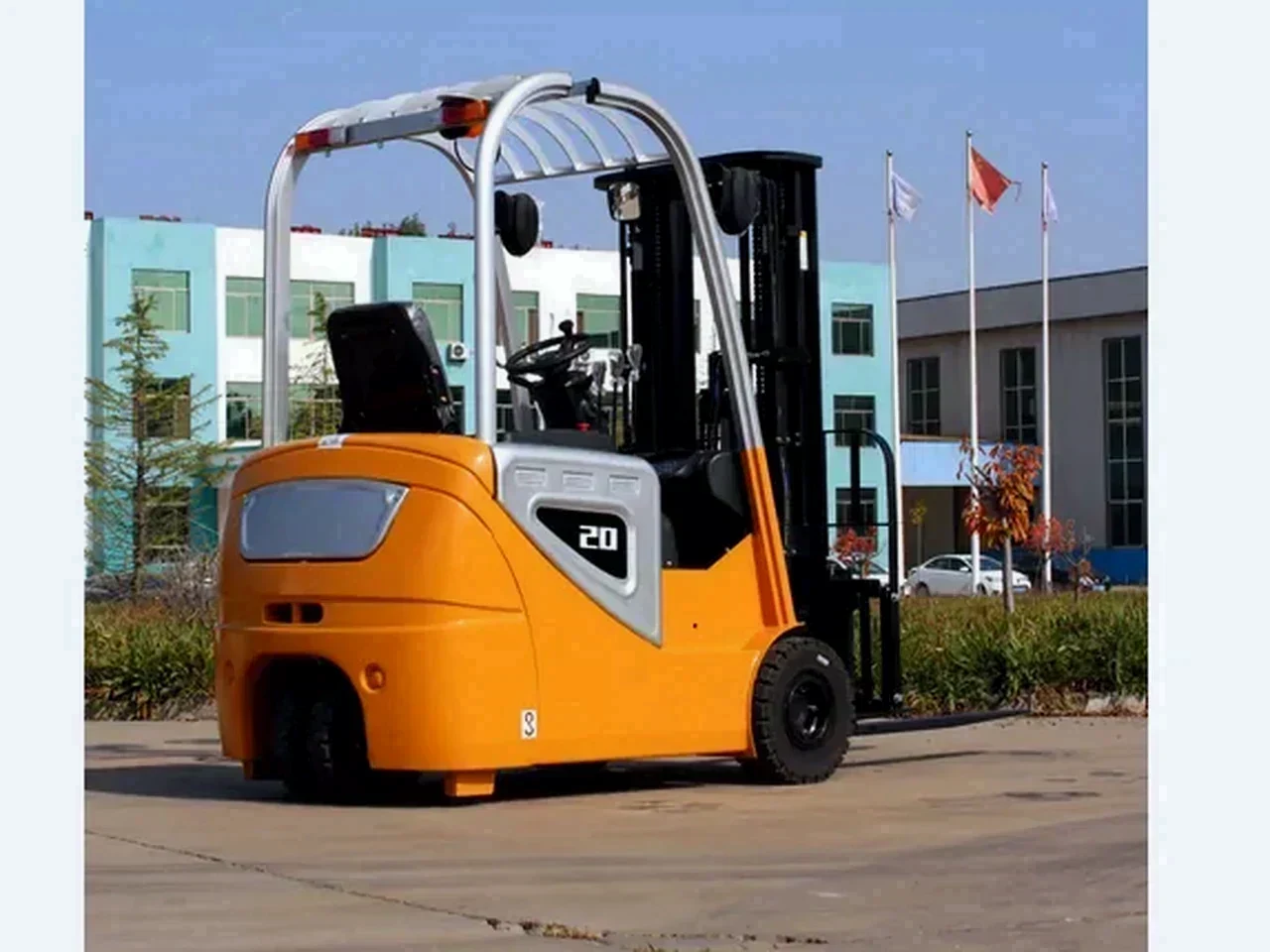

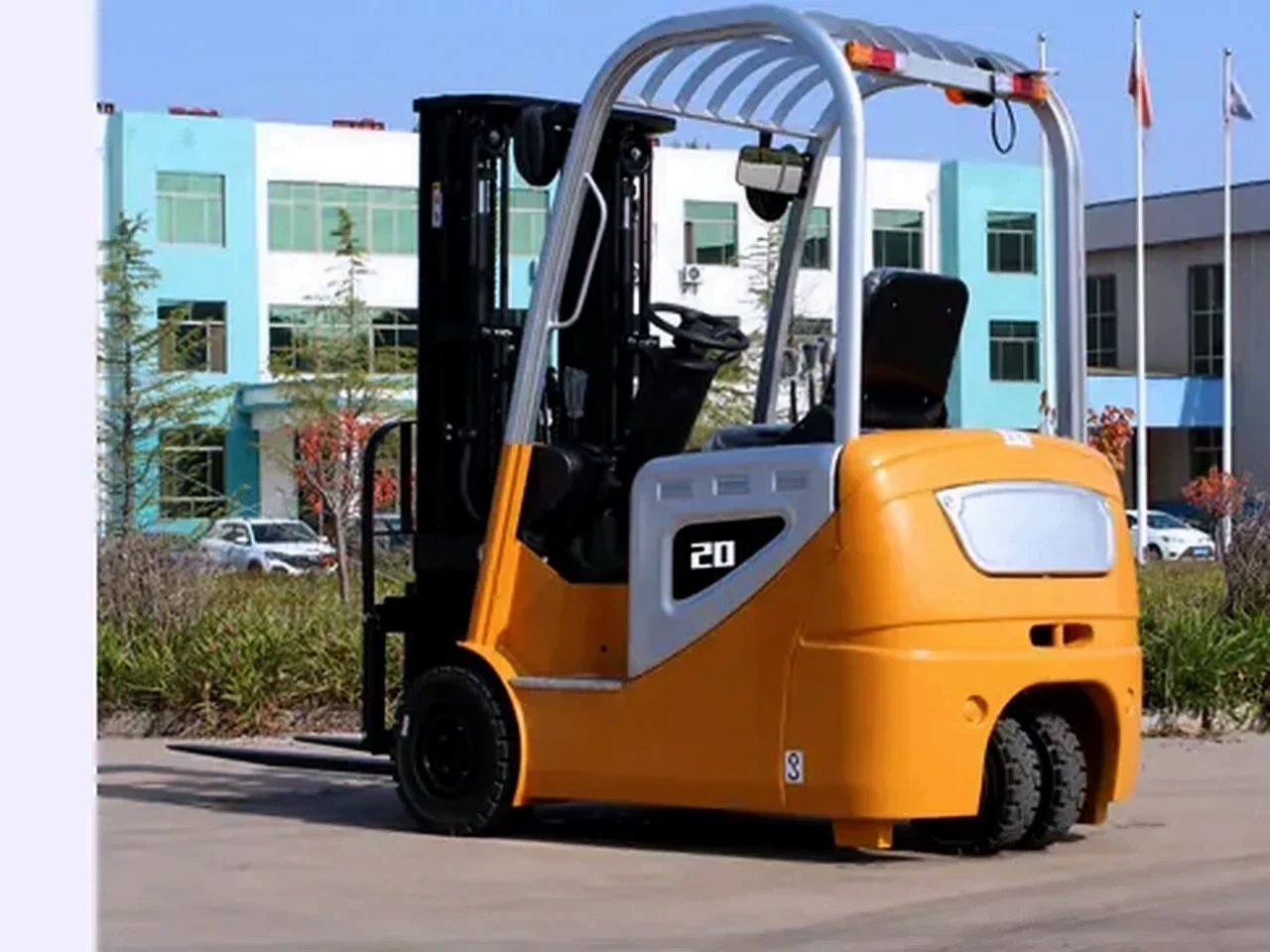

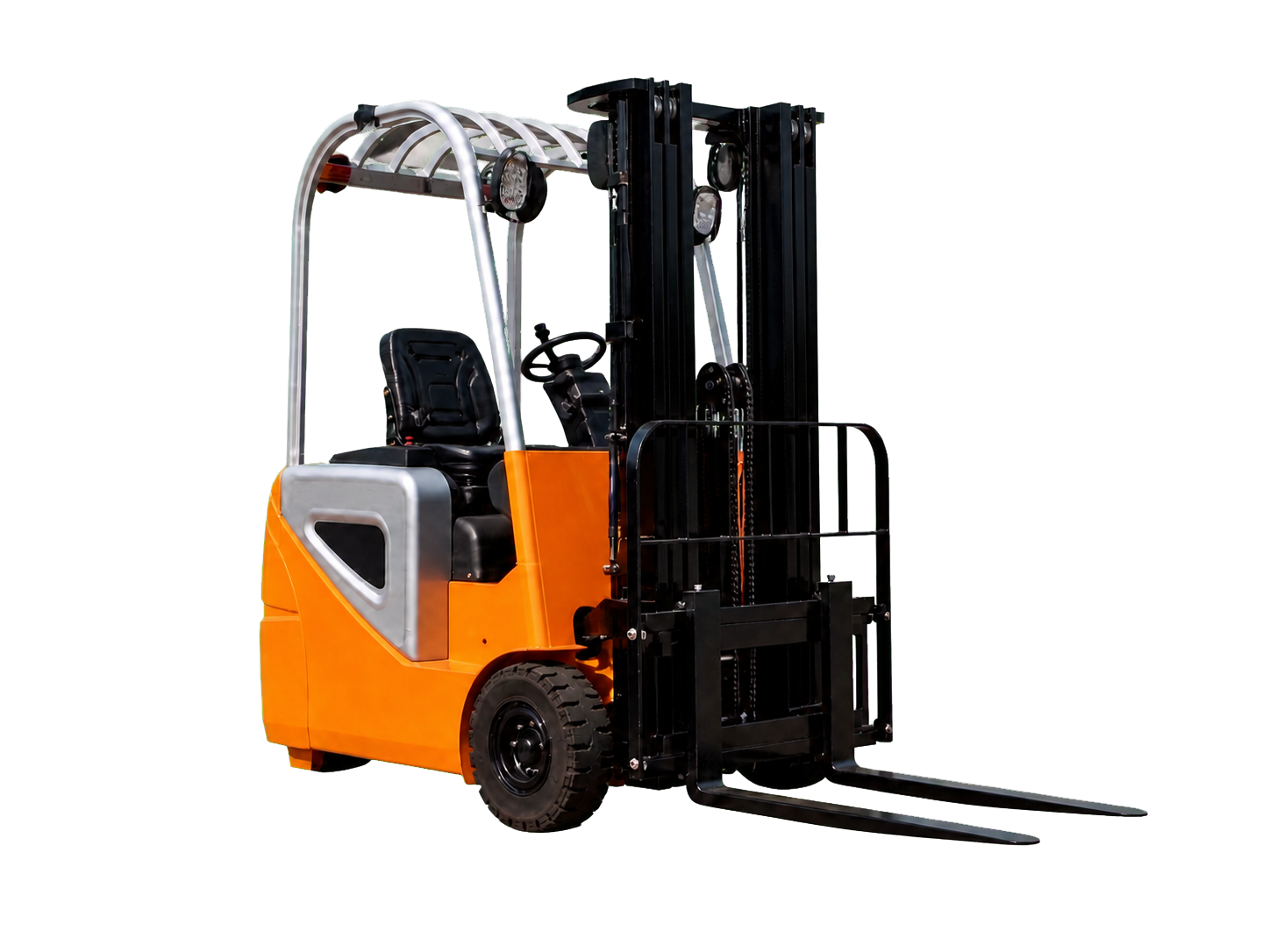

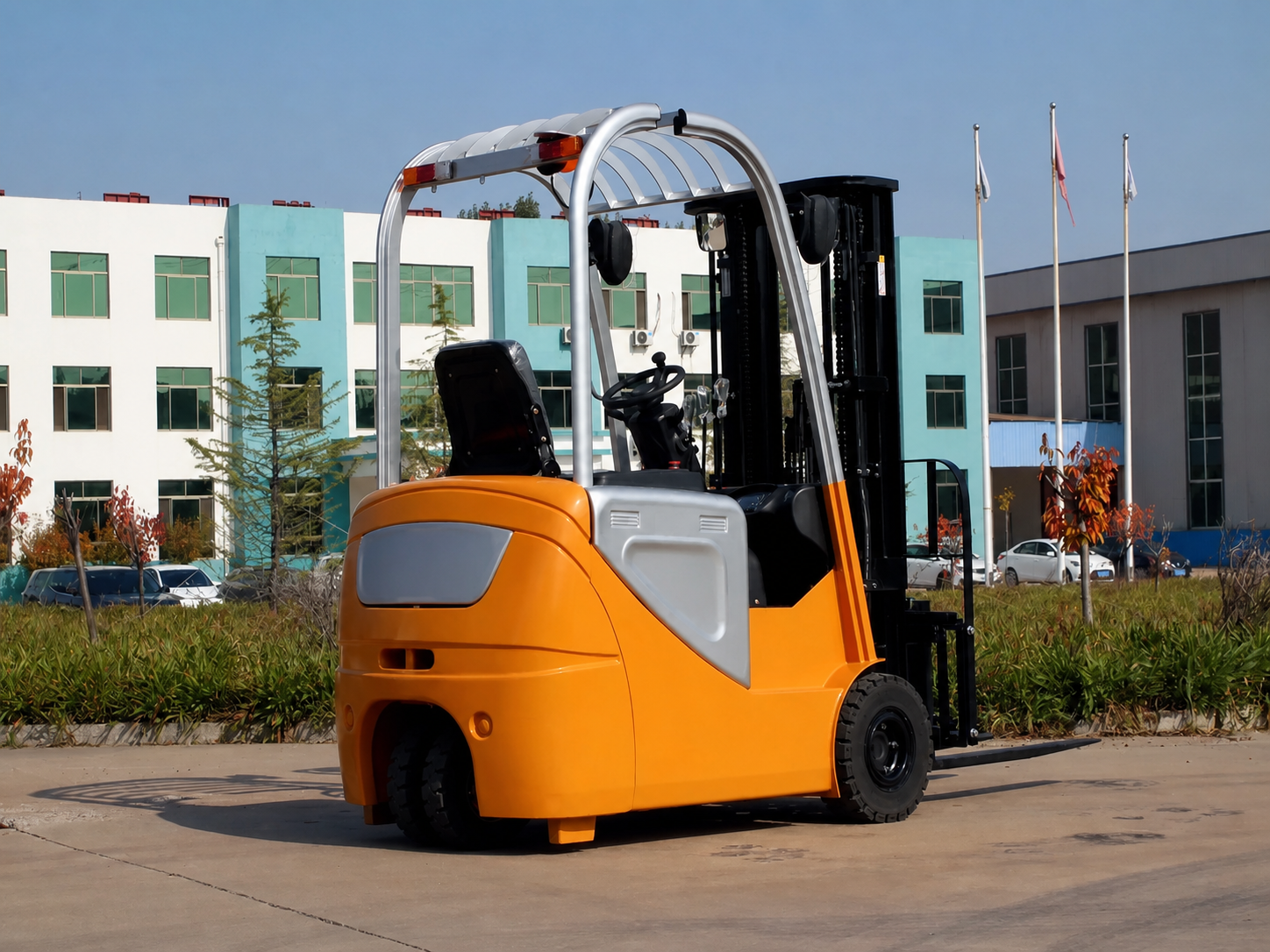

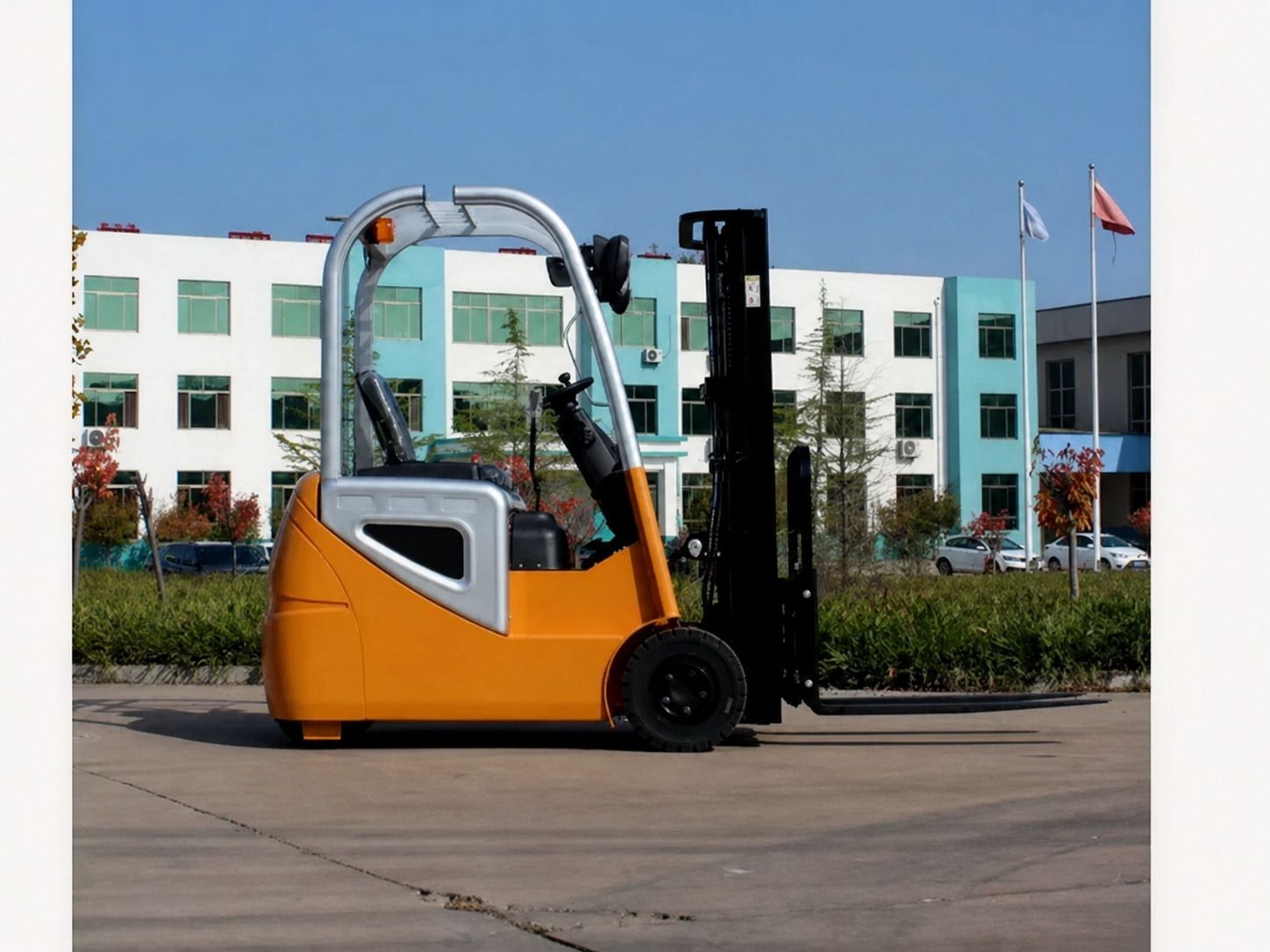

Product Gallery
