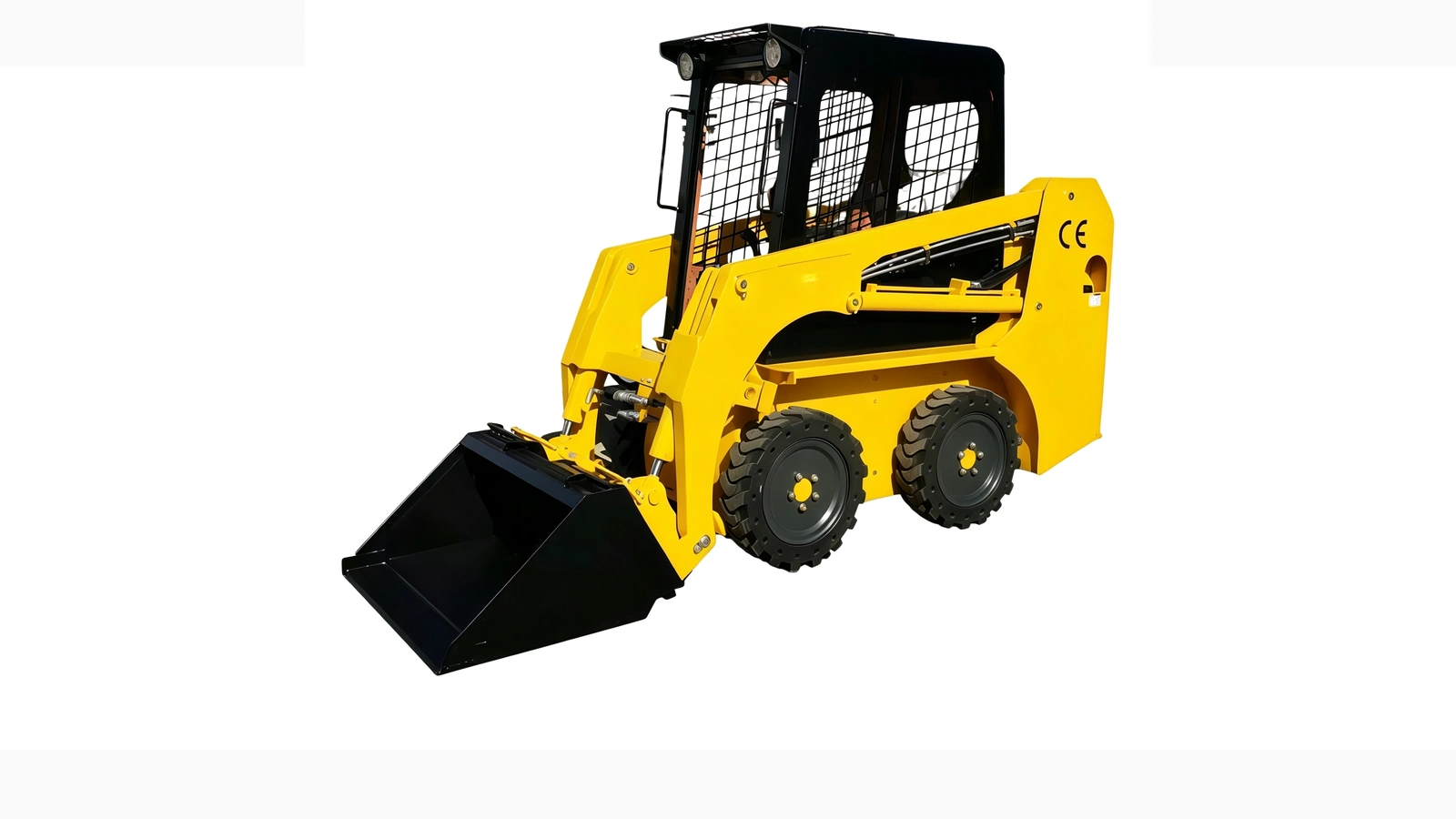

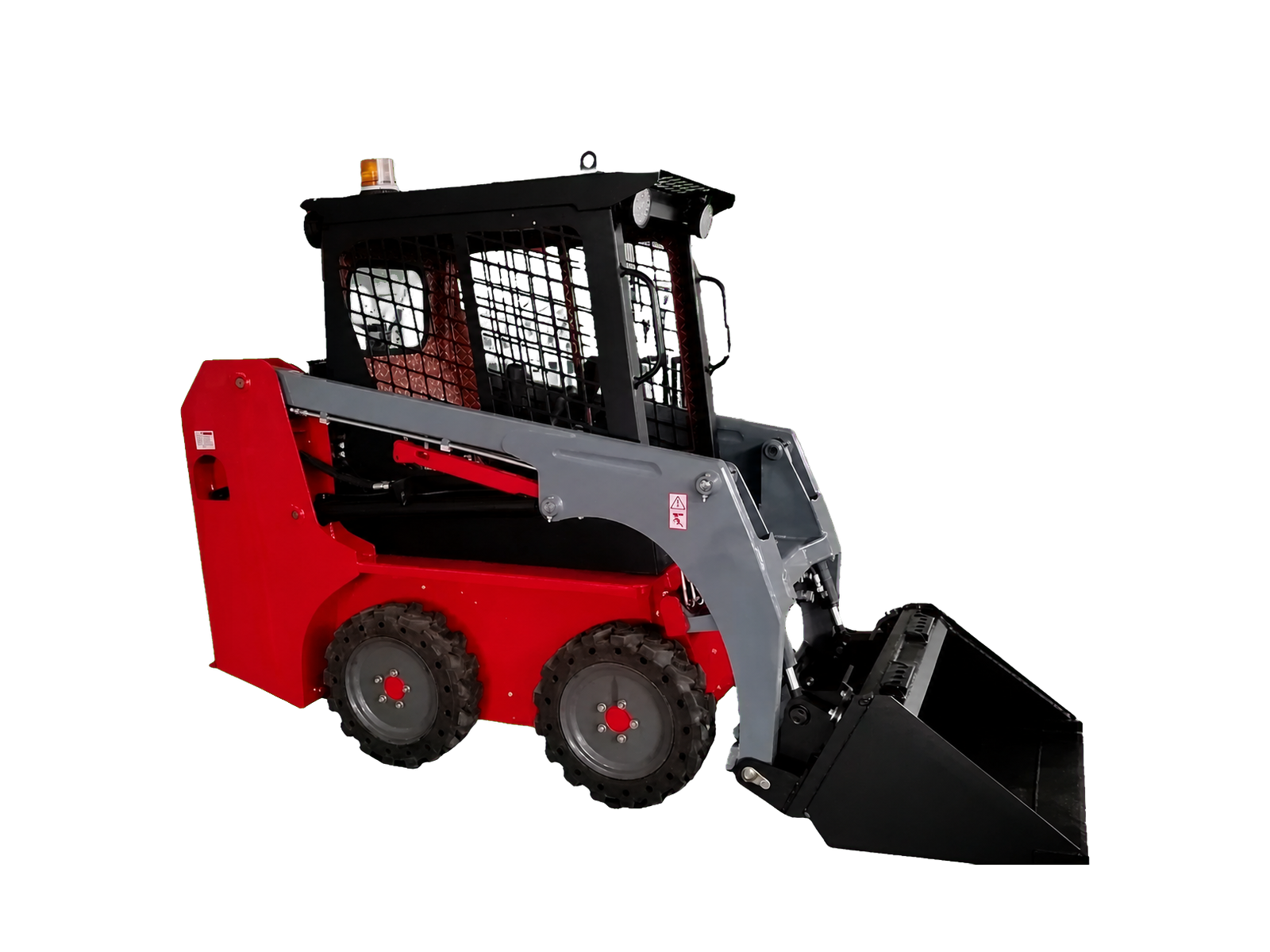

Wheeled Skid-Steer Loader · HLY25 Series
HLY25
Wheeled Skid-Steer Loader
The HLY25 is HONGLI's most compact loader — a wheeled skid-steer rated at 380 kg operating load, sized for small farms, tight yards, landscaping and rental fleets. Skid-steer means it drives the wheels on each side at different speeds and pivots within its own length — not a conventional articulated wheel loader, and it gets into spaces a wheel loader can't. Power is a Kubota D1105 diesel (18.2 kW, 1.123 L) meeting Euro 5 / EPA Tier 4. Bucket 0.2 m³, dump height 2,000 mm, travel 9 km/h, operating weight 1,460 kg. Built in Tai'an, Shandong; 1-unit MOQ, 15–30 day lead time, 12-month warranty, CE on request.
HLY25 · Product Images
Capacity
380 kg rated load
Power
Diesel
Height
2000 mm
Weight
1460 kg
Technical Specifications
HLY25 Specification Table
// Loader Specs
Rated Load
380 kg
Bucket Capacity
0.2 m³
Operating Weight
1460 kg
Dump Height
2000 mm
// Engine & Powertrain
Engine Model
Kubota D1105
Engine Power
18.2 kW
Rated Speed
3000 rpm
Displacement
1.123 L
// Additional Specifications
Max Traction
≥12 kN
Max Breakout Force
≥7.3 kN
Boom Lifting Time
7 s
Max Travel Speed
9 km/h
Emission Standard
Euro 5 / EPA4

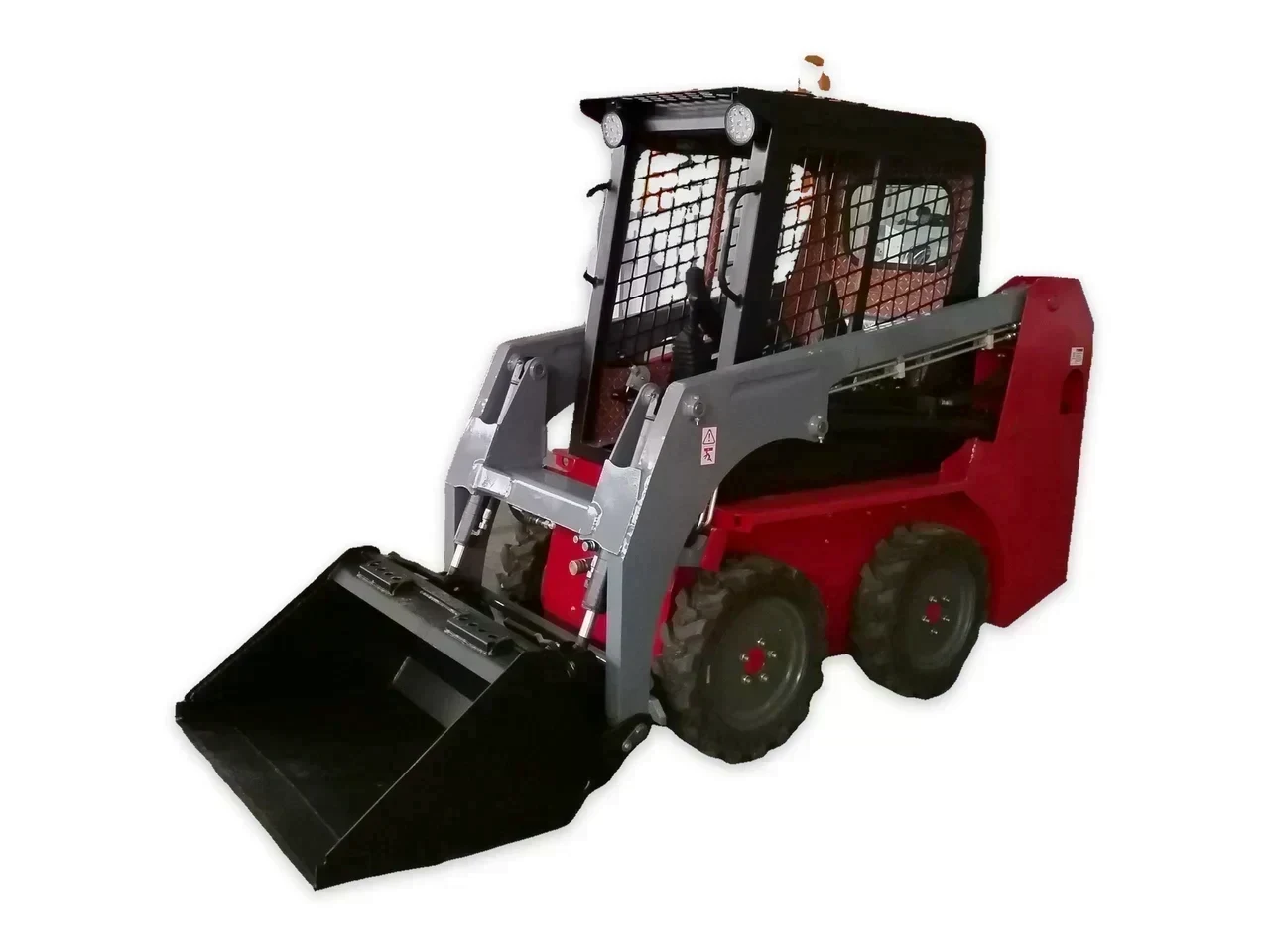

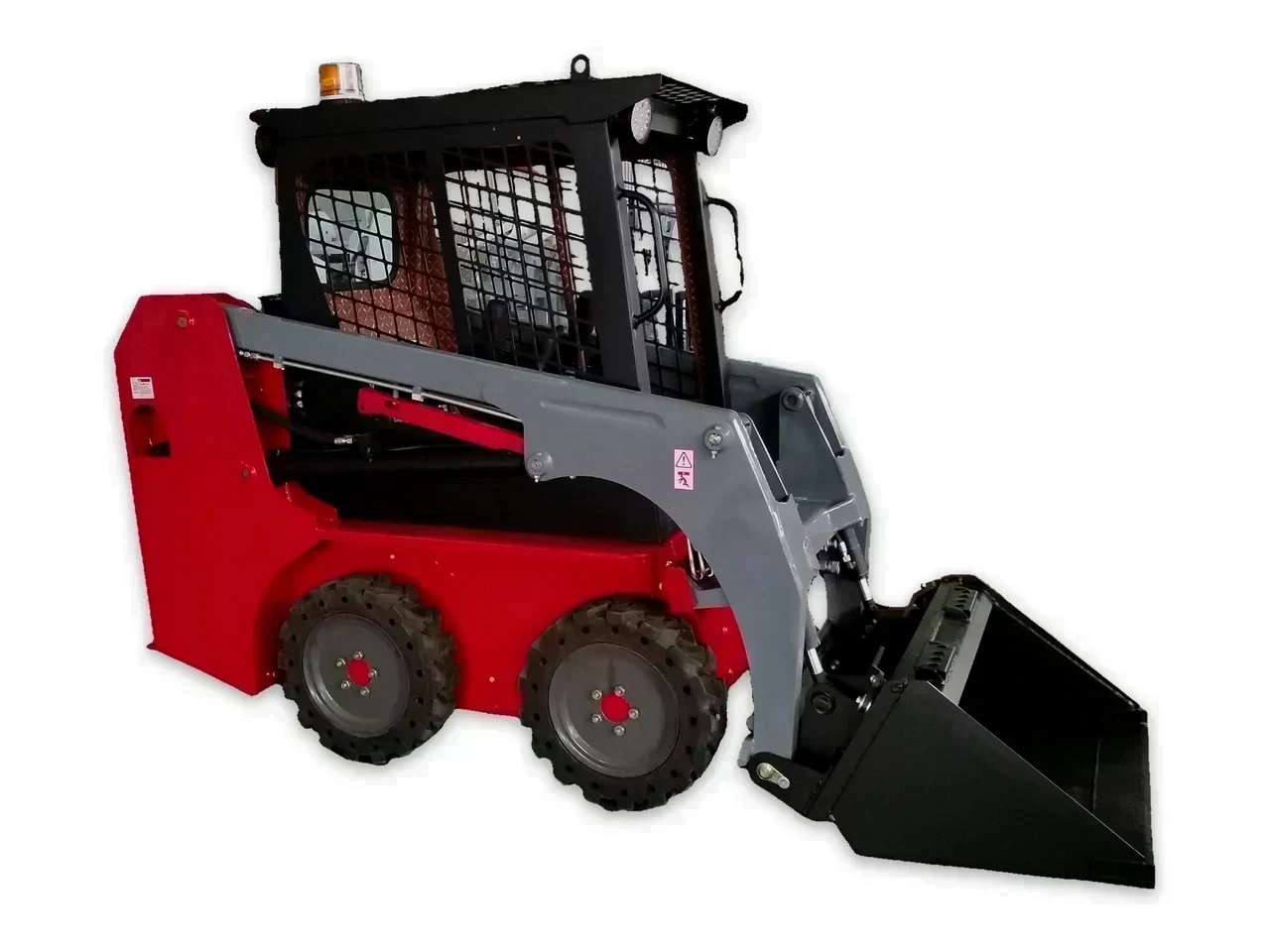

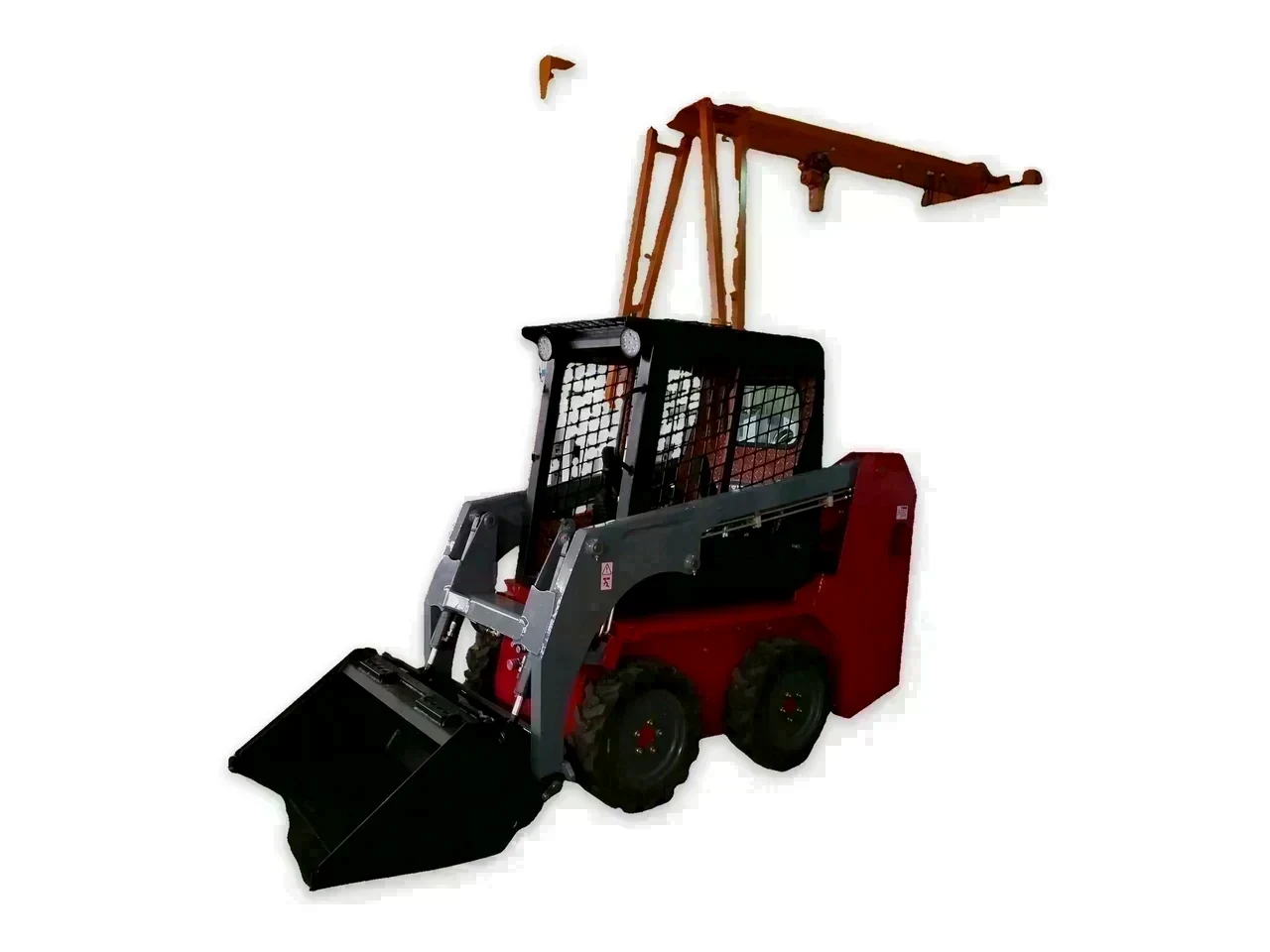

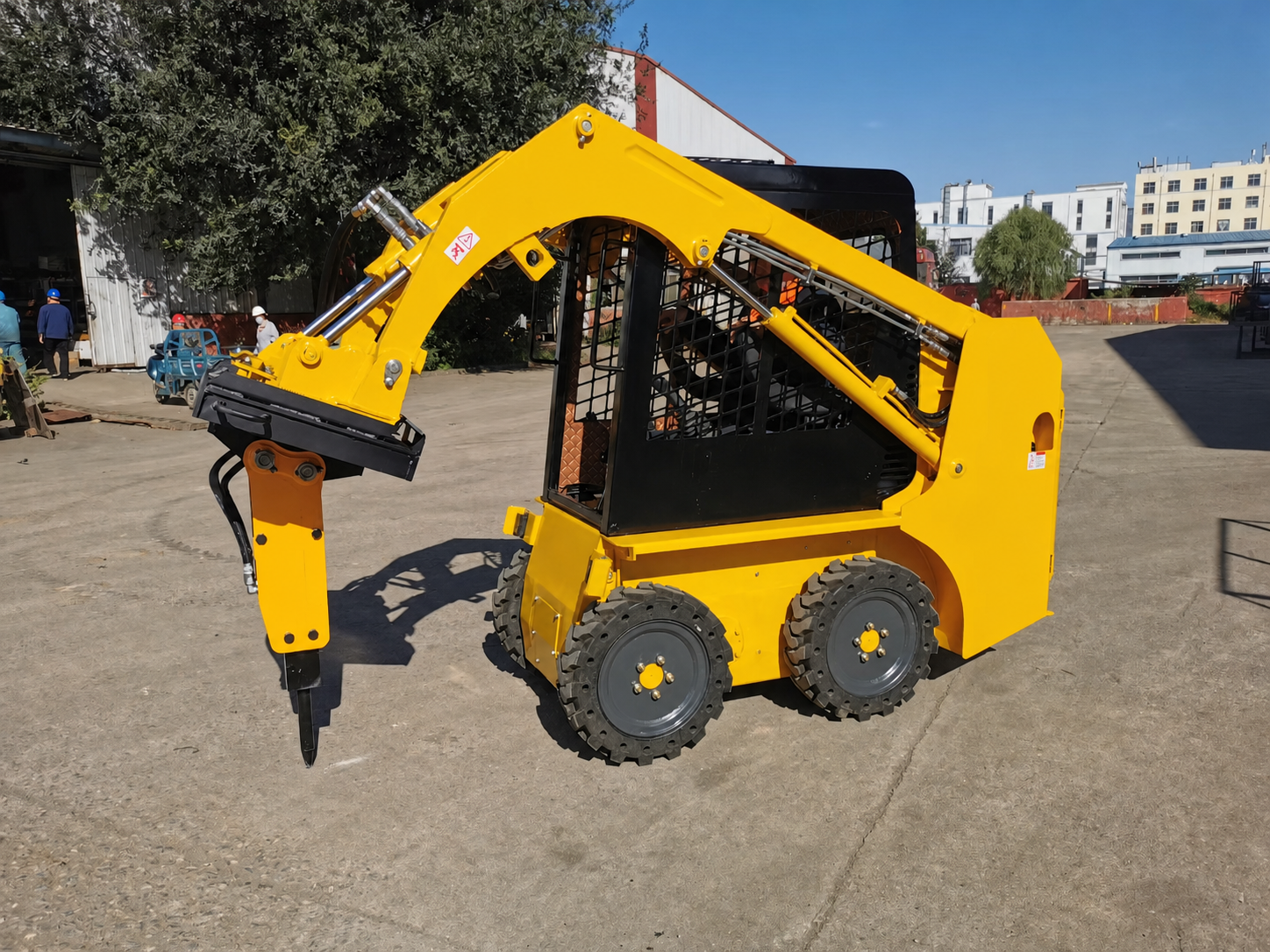

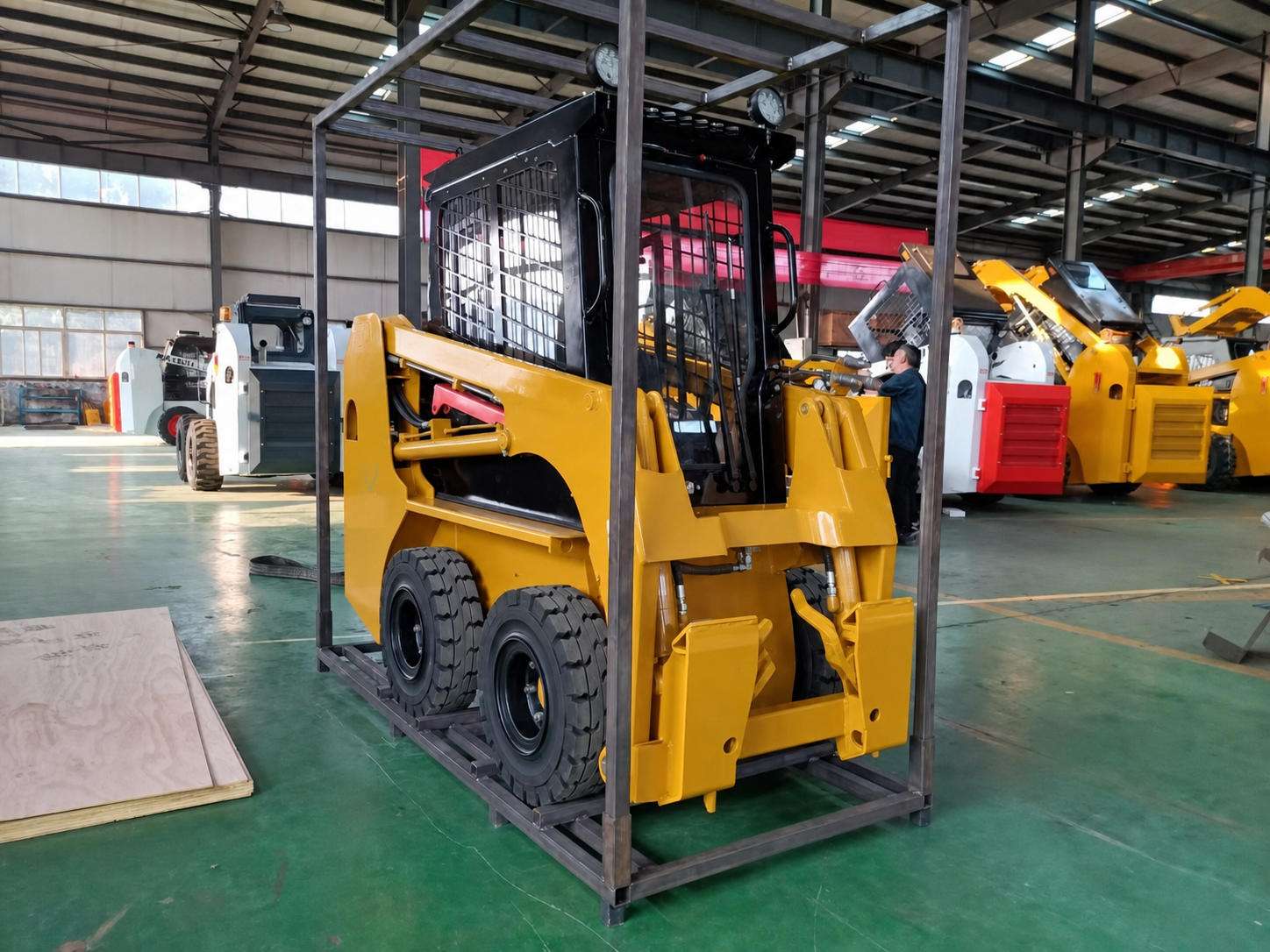

Product Gallery
Take Action
Find the Right Wheeled Skid-Steer Loader for Your Operation
Talk to HONGLI about model selection, export configuration, and pricing. We respond within one business day.
