Diesel Forklift · HLCPC100 Series
HLCPC100
Diesel Forklift
The HLCPC100 is a 10,000 kg (22,000 lb) diesel forklift for ports, container yards, steel mills and heavy outdoor handling. It runs a QUANCHAI 4J1 engine — 85 kW, 500 N·m — with a 3 m two-stage mast and a 600 mm load centre. Service weight is 12,510 kg. Turning radius is 4,000 mm. Forks are 80 × 175 × 1,220 mm on 9.00-20 tyres. EPA and EU Stage compliant engines are available, and CE is supplied on request. HONGLI ships it factory-direct from Tai'an, Shandong: a one-unit minimum order, 15–30 day lead times, and a 12-month warranty. Request full specs or a quote below.

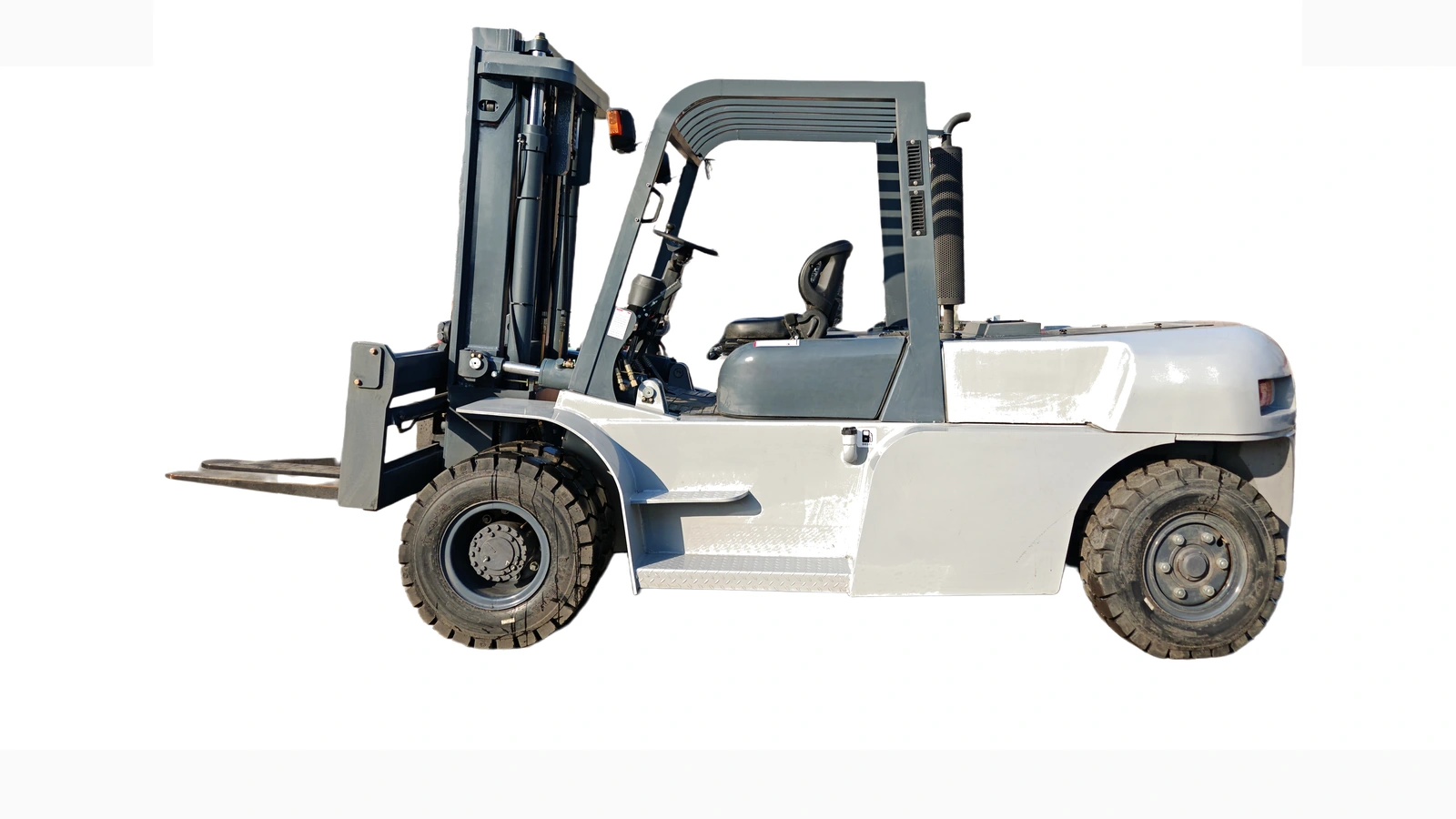

HLCPC100 · Product Images
Capacity
10000kg
Power
Diesel
Height
3000 mm
Weight
12510 kg
Technical Specifications
HLCPC100 Specification Table
// Basic Performance
Product Name
HLCPC100 Diesel Forklift
Model
HLCPC100
Category
Diesel Forklift
Rated Capacity
10000 kg (600 mm load centre)
Lift Height
3000 mm
Fork Size
80 × 175 × 1220 mm (T×W×L)
Fork Length
1220 mm
Turning Radius
4000 mm
Gradeability
15% laden / 20% unladen
// Engine & Powertrain
Power Type
Diesel
Engine Model
QUANCHAI 4J1
Engine Power
85 kW
Rated Speed
2200 rpm
Max Torque
500 N·m @ 1650 rpm
Transmission
Torque-converter
// Dimensions & Weight
Overall Width
2275 mm
Overall Height
2850 mm (mast retracted)
Service Weight
12510 kg
// Tyre & Brake
Tire
Front 9.00-20-14PR / rear 9.00-20-14PR (pneumatic, solid optional)
Brake Type
Available on request
// Export & Documents
MOQ
1 unit
Lead Time
15-30 days
Packing Method
Available on request
Container Loading Quantity
Available on request
Warranty
12 months
Certificate
Available on request
Manual
Available on request
Spare Parts List
Available on request

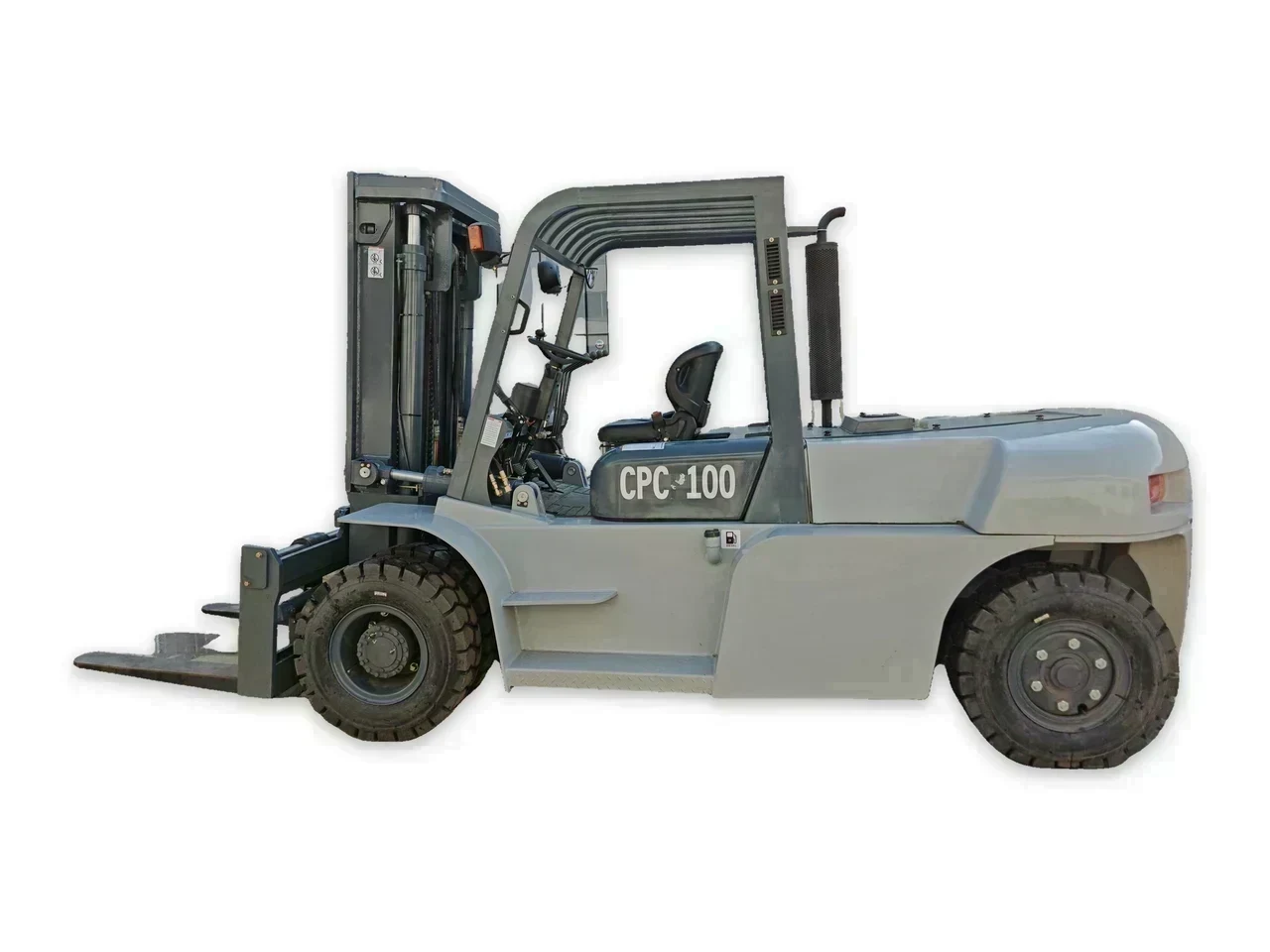

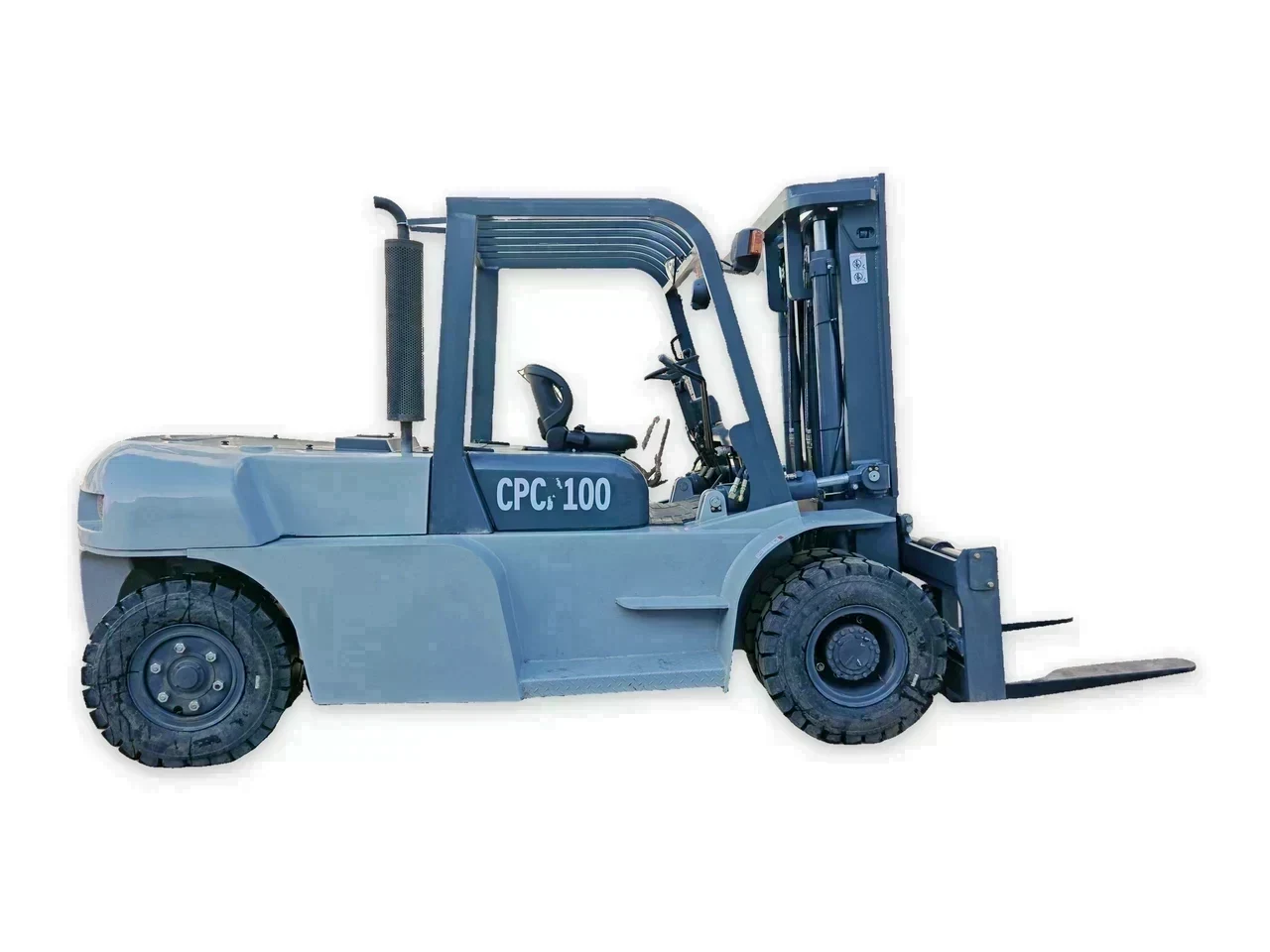

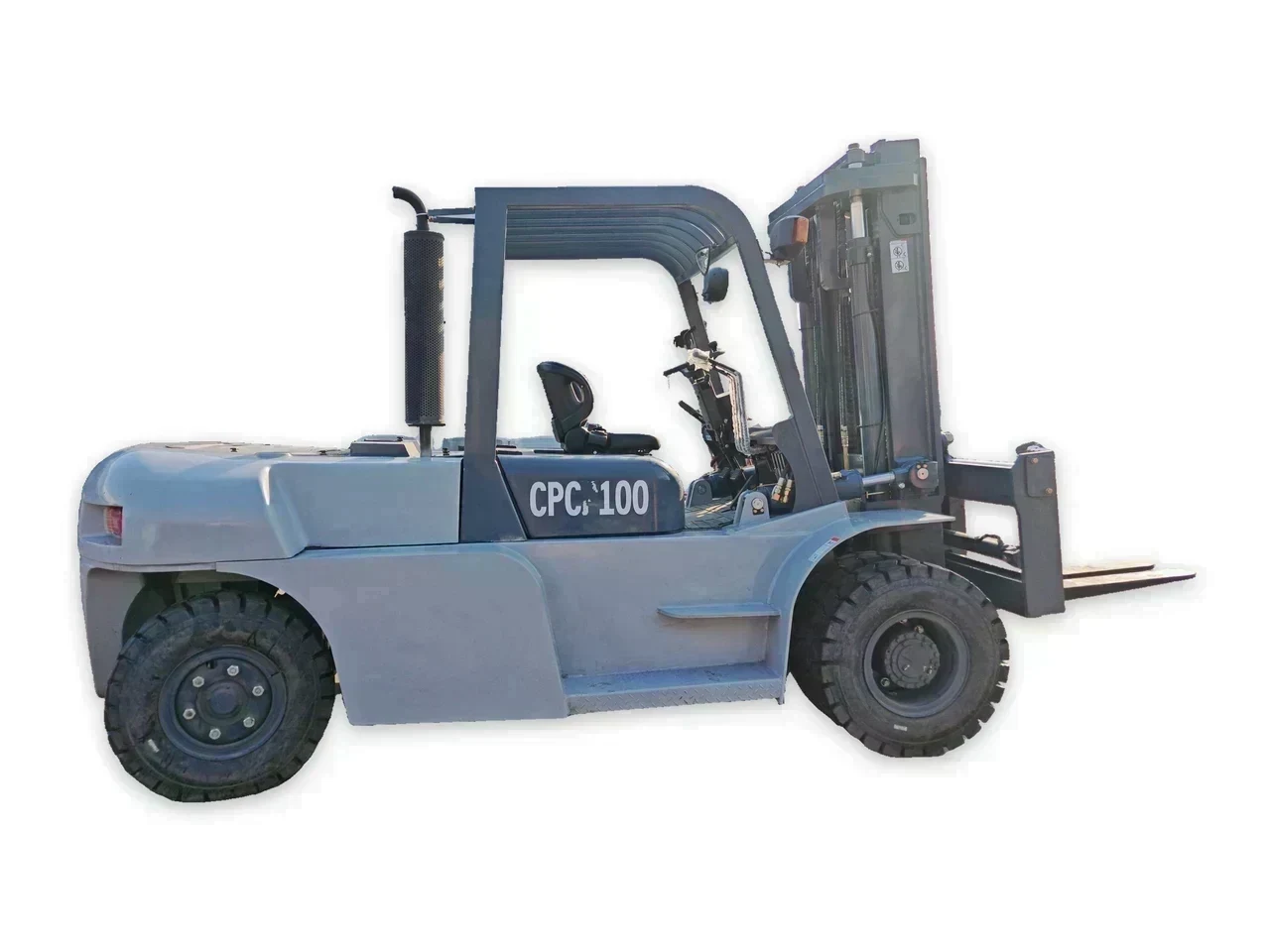

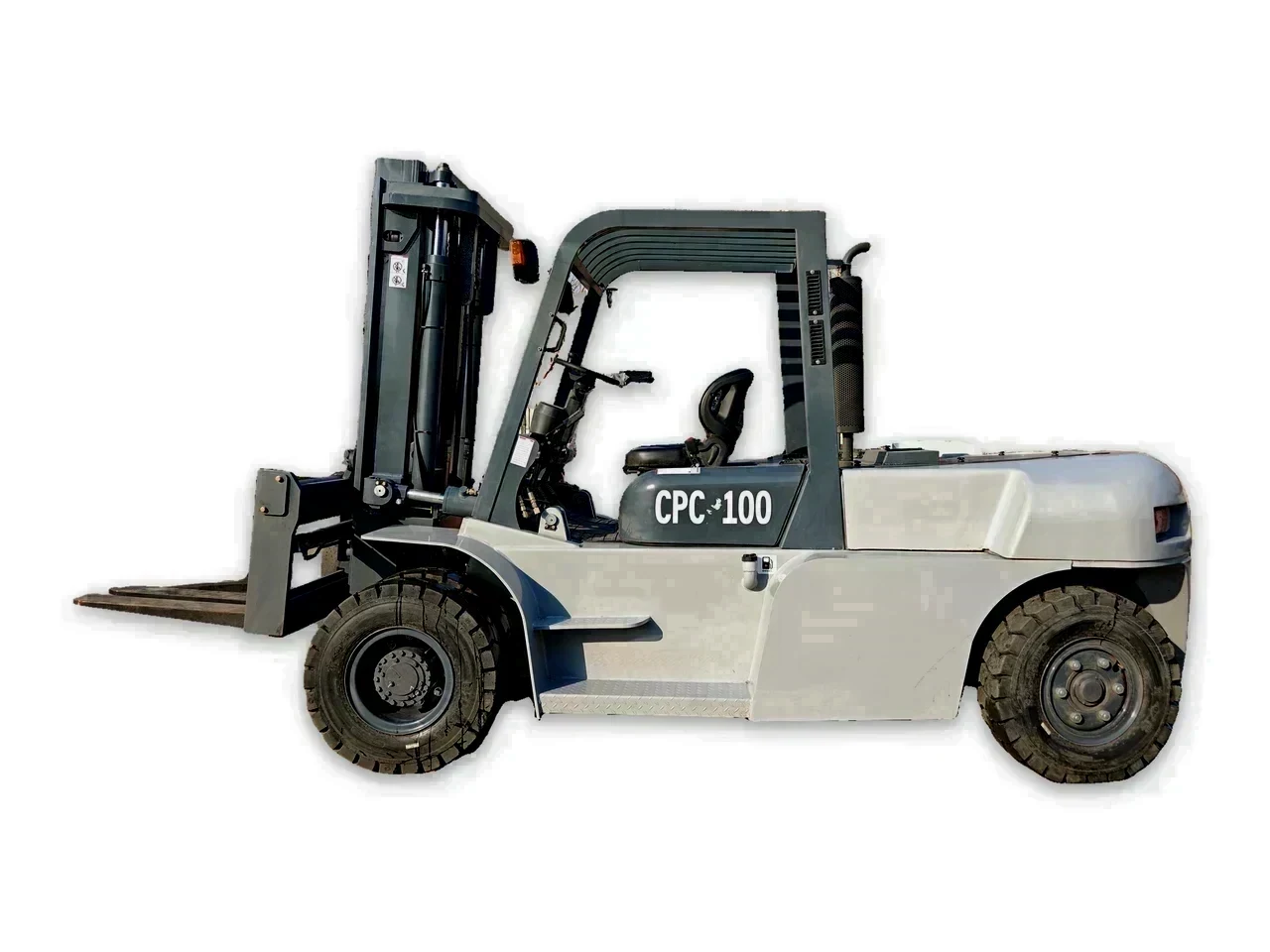

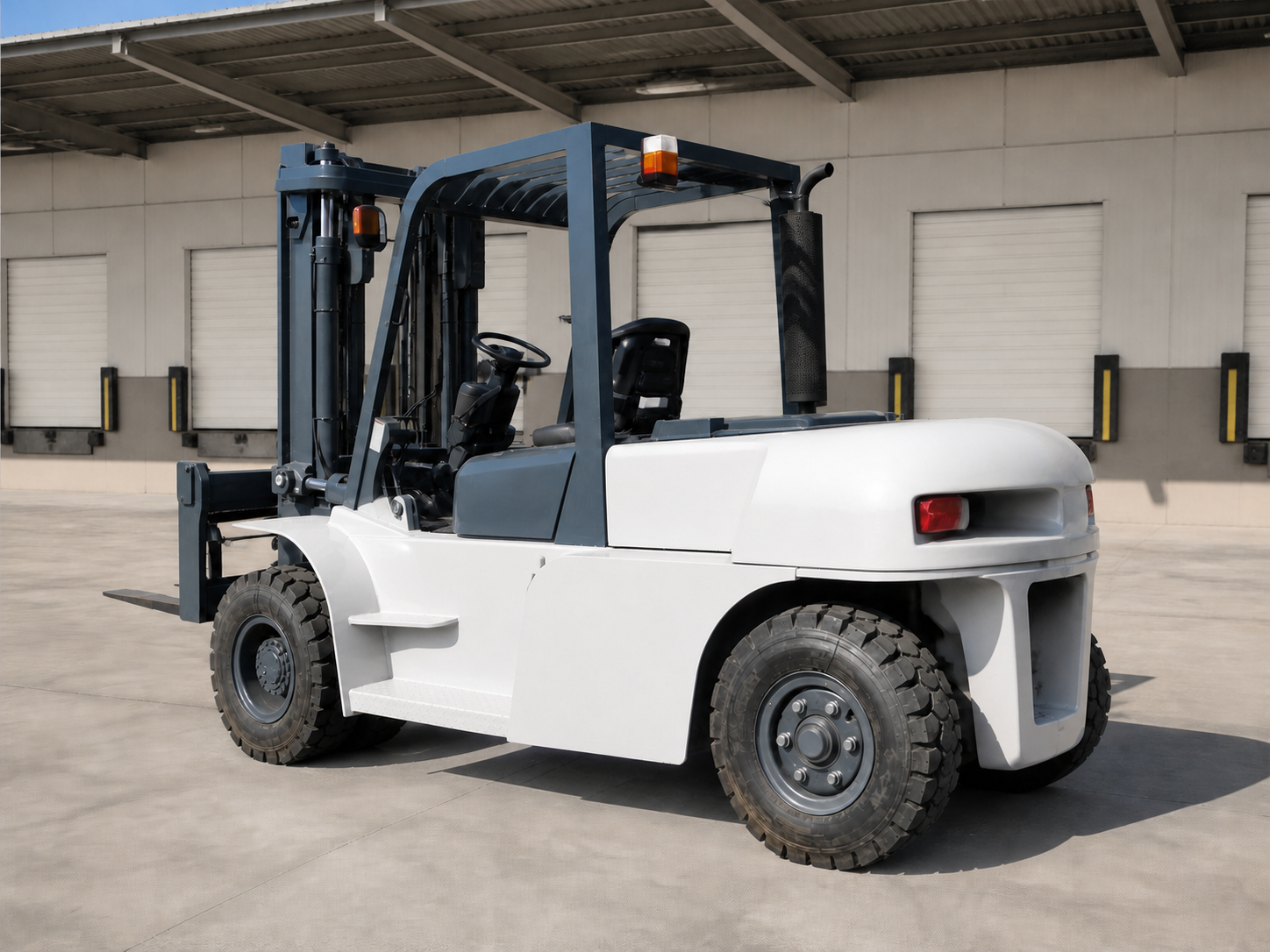

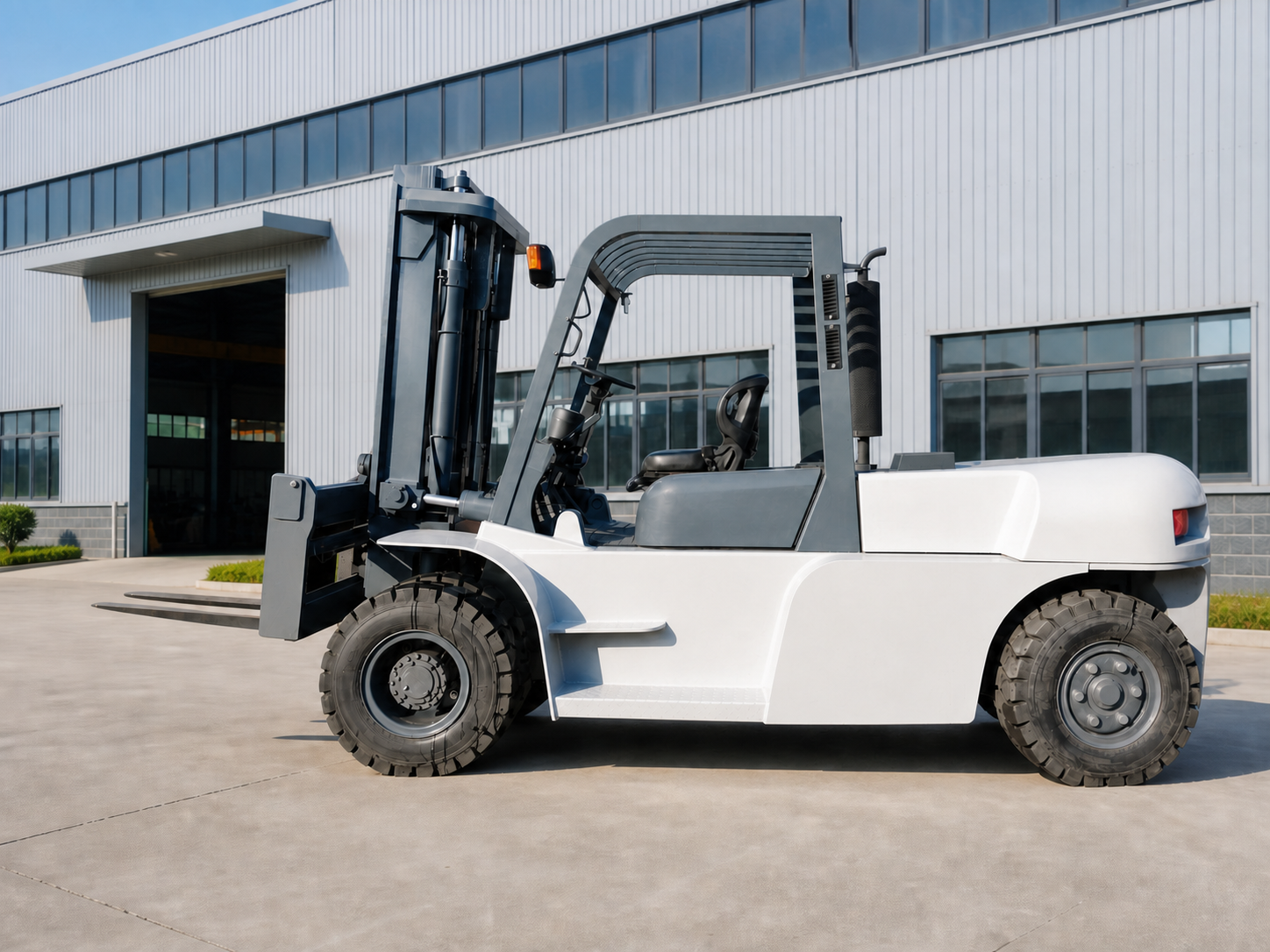

Product Gallery
Take Action
Find the Right Diesel Forklift for Your Operation
Talk to HONGLI about model selection, export configuration, and pricing. We respond within one business day.
