Diesel Forklift · HLCPC70 Series
HLCPC70
Diesel Forklift
The HLCPC70 is a 7,000 kg (15,400 lb) diesel forklift for ports, container yards, steel mills and heavy outdoor handling. It runs a QUANCHAI 4J1 engine — 85 kW, 500 N·m — with a 3 m two-stage mast and a 600 mm load centre. Service weight is 9,500 kg. Turning radius is 3,450 mm. Forks are 65 × 150 × 1,220 mm on 8.25-15 tyres. EPA and EU Stage compliant engines are available, and CE is supplied on request. HONGLI ships it factory-direct from Tai'an, Shandong: a one-unit minimum order, 15–30 day lead times, and a 12-month warranty. Request full specs or a quote below.

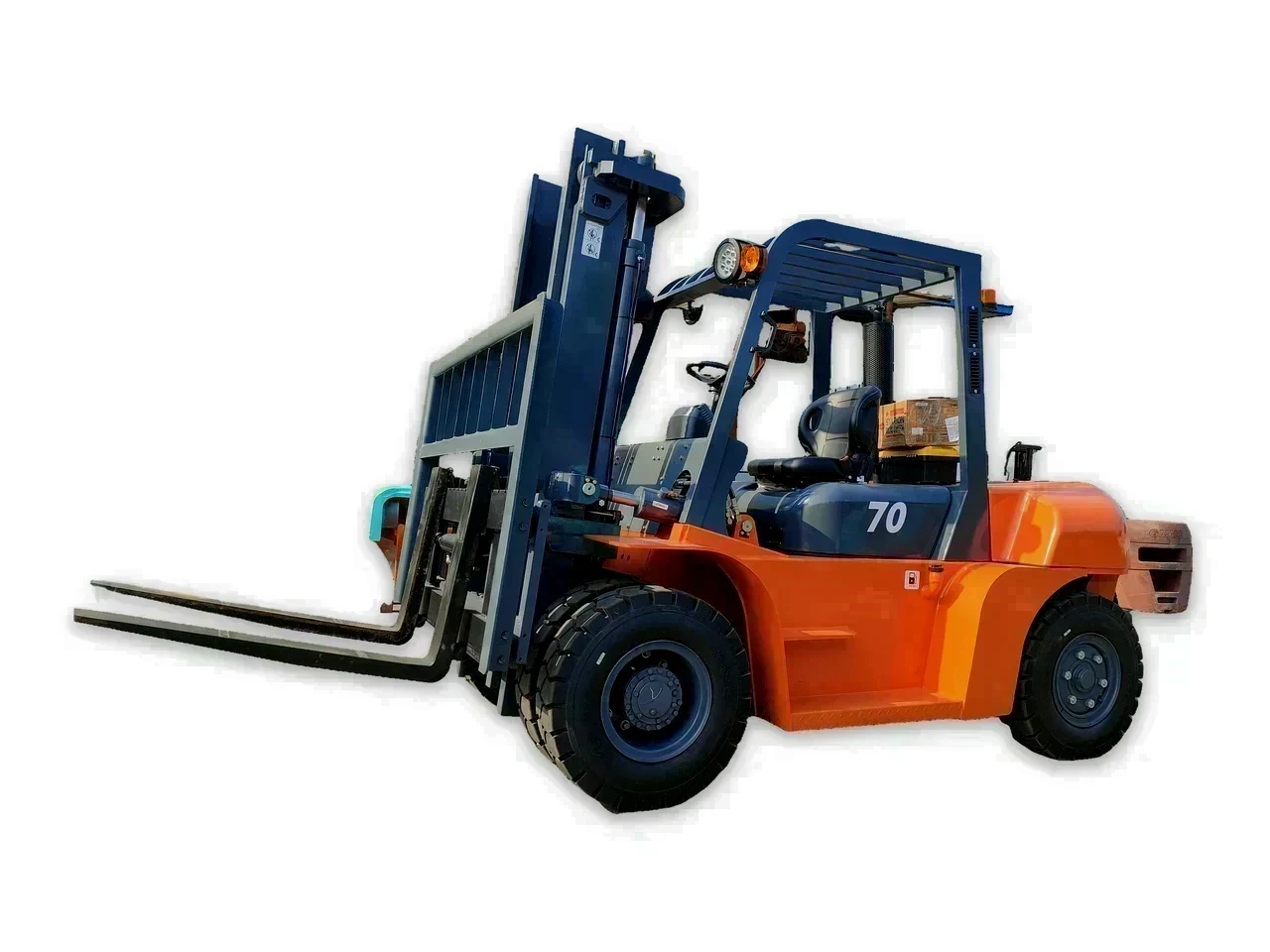

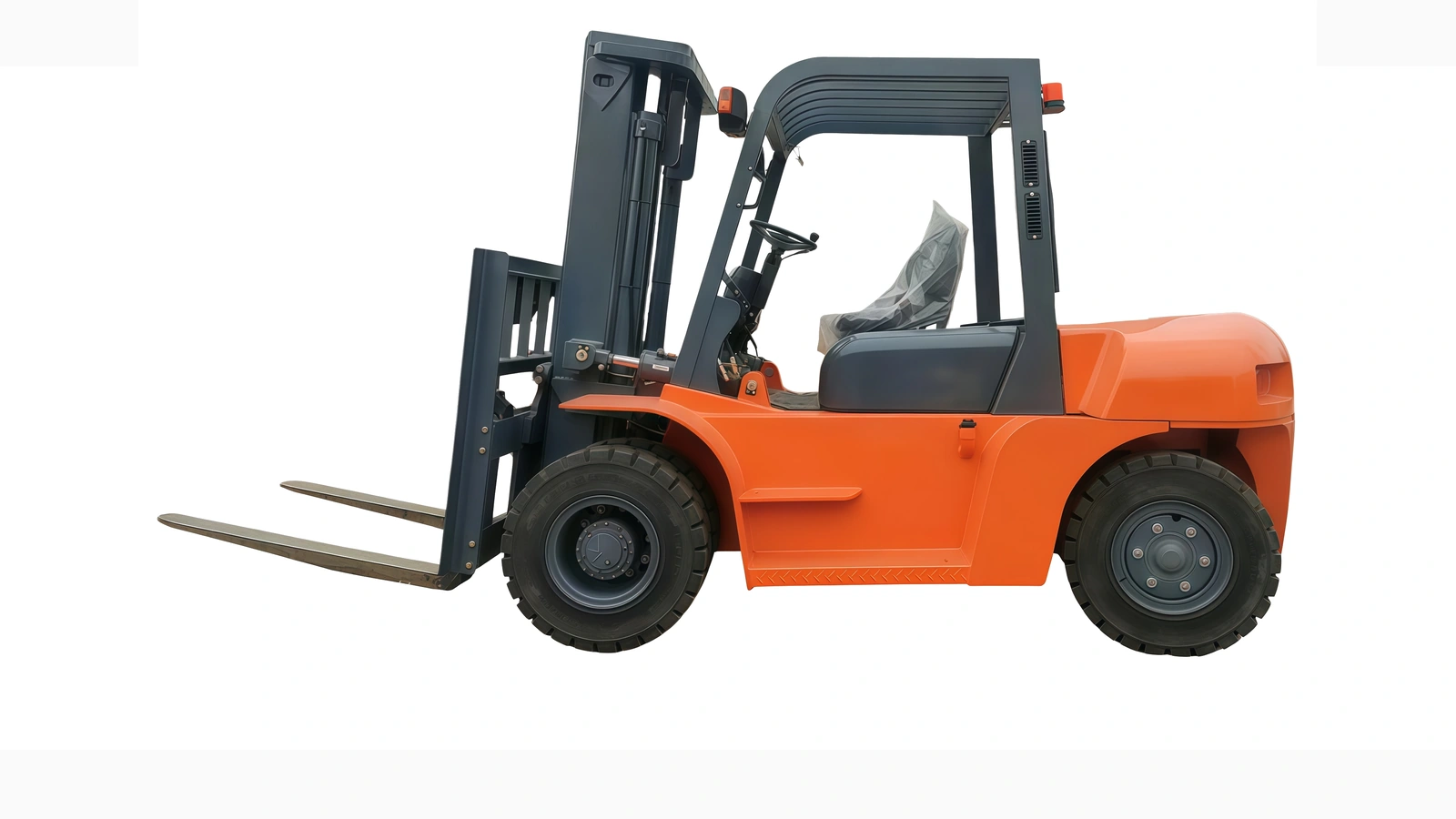

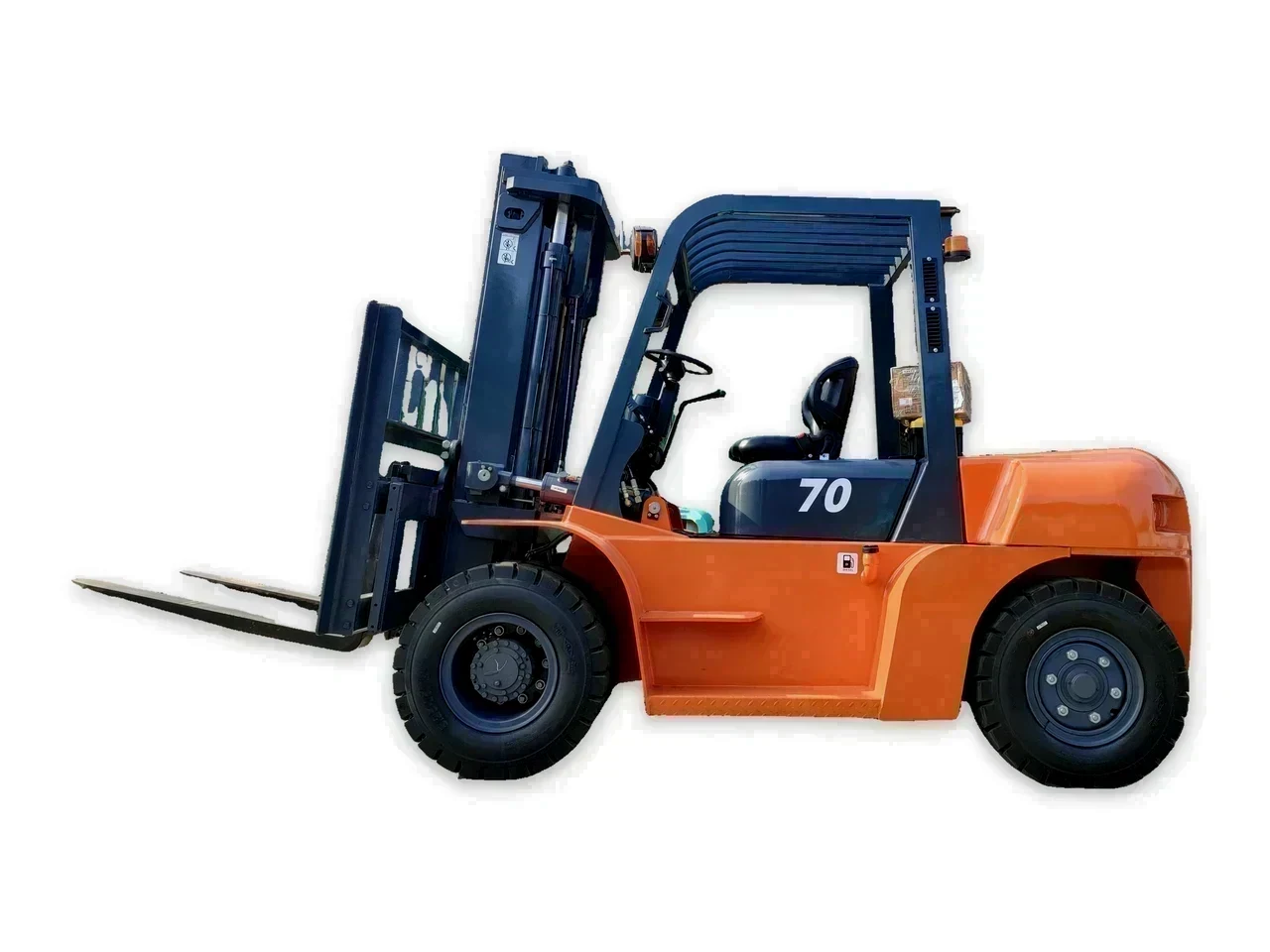

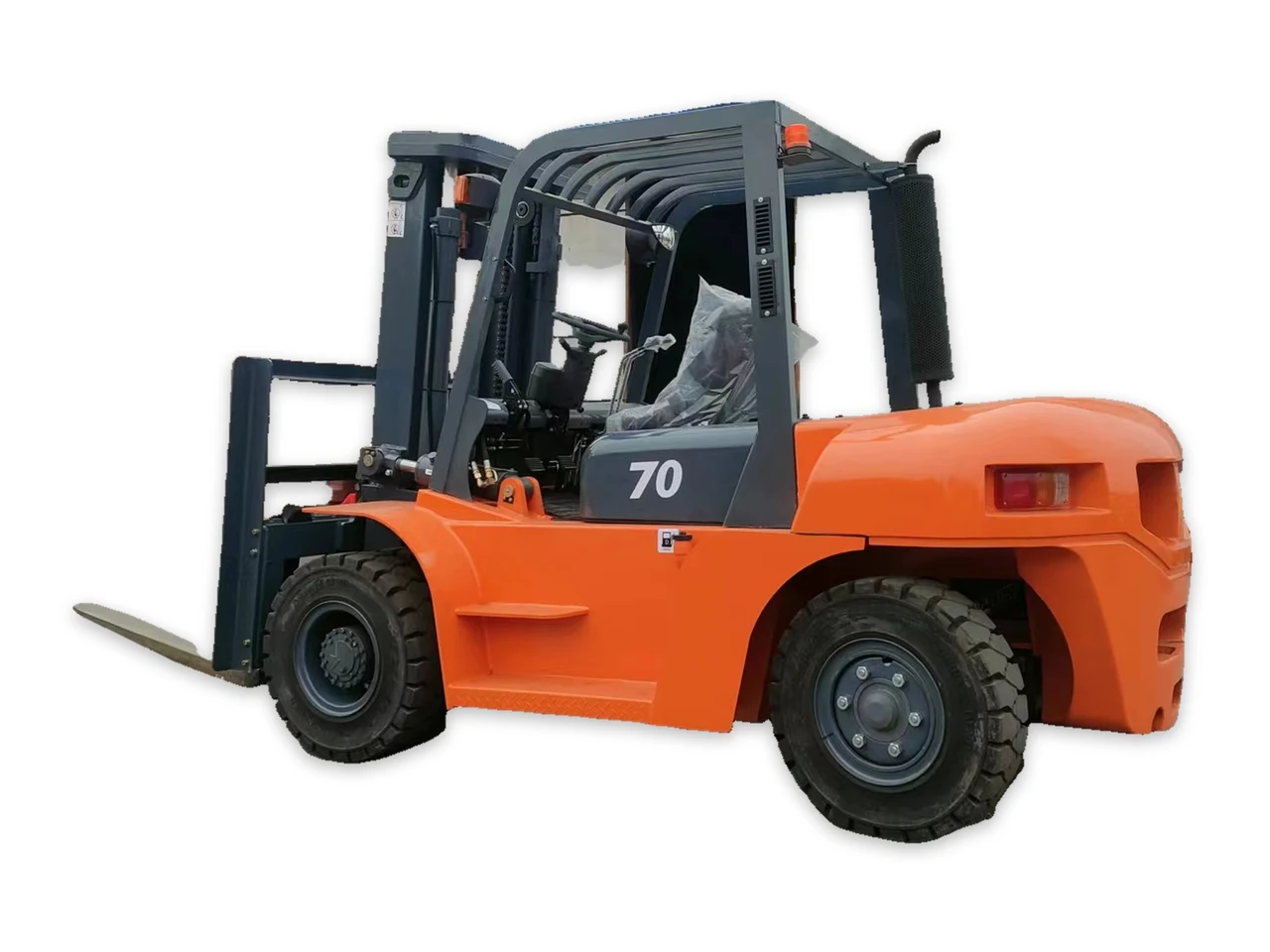

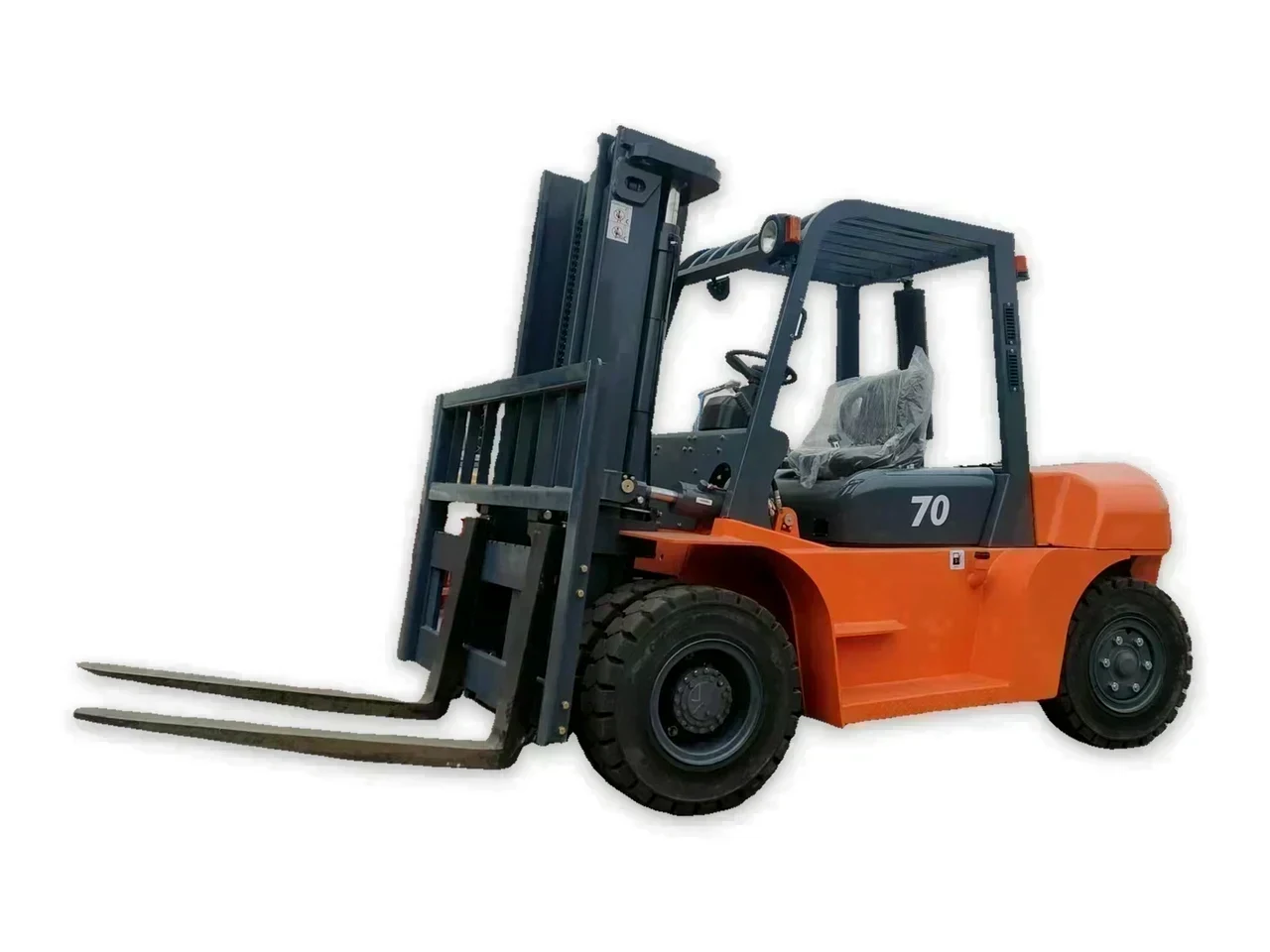

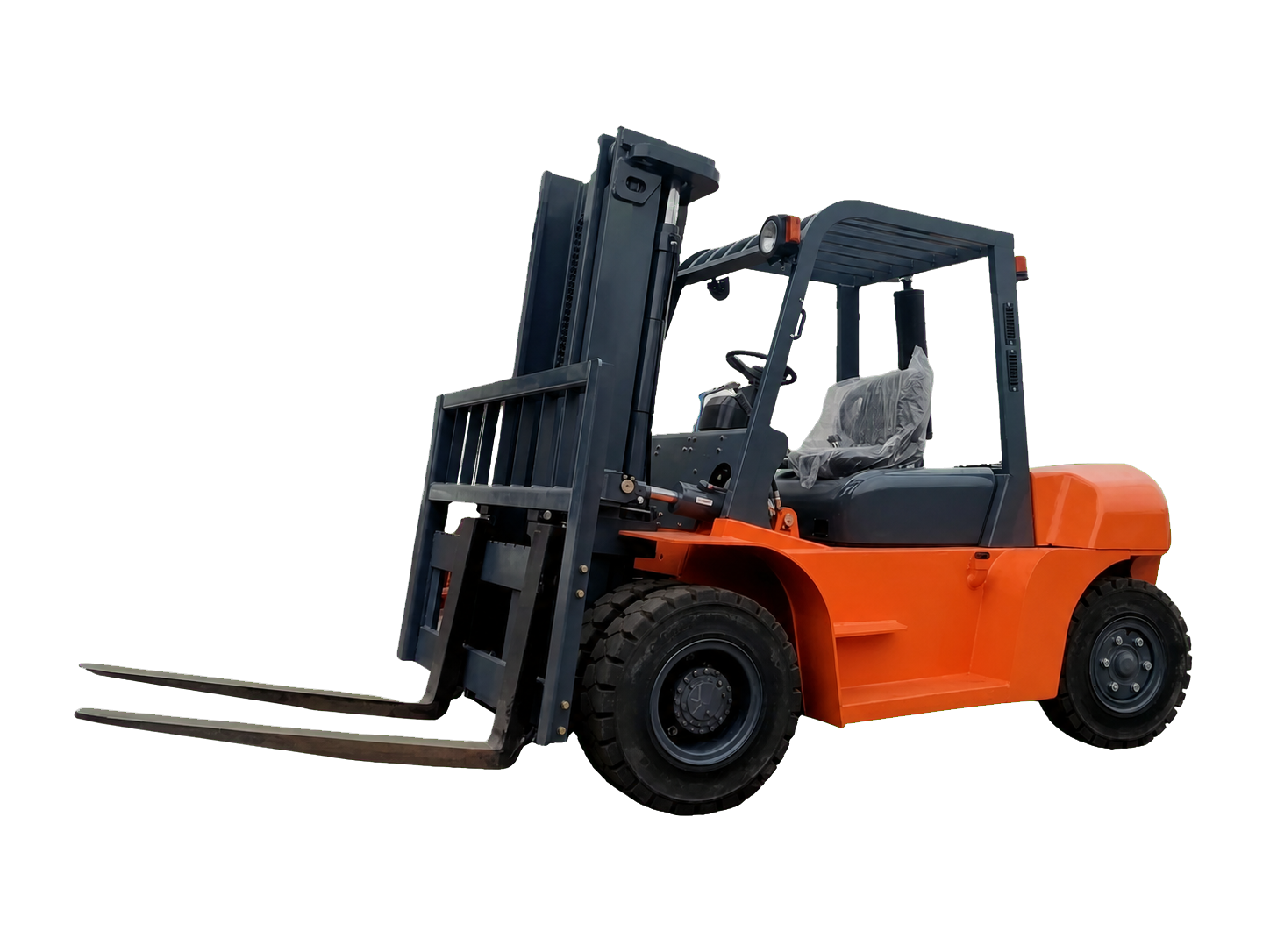

HLCPC70 · Product Images
Capacity
7000kg
Power
Diesel
Height
3000 mm
Weight
9500 kg
Technical Specifications
HLCPC70 Specification Table
// Basic Performance
Product Name
HLCPC70 Diesel Forklift
Model
HLCPC70
Category
Diesel Forklift
Rated Capacity
7000 kg (600 mm load centre)
Lift Height
3000 mm
Fork Size
65 × 150 × 1220 mm (T×W×L)
Fork Length
1220 mm
Turning Radius
3450 mm
Gradeability
15% laden / 20% unladen
// Engine & Powertrain
Power Type
Diesel
Engine Model
QUANCHAI 4J1
Engine Power
85 kW
Rated Speed
2200 rpm
Max Torque
500 N·m @ 1650 rpm
Transmission
Torque-converter
// Dimensions & Weight
Overall Width
1995 mm
Overall Height
2500 mm (mast retracted)
Service Weight
9500 kg
// Tyre & Brake
Tire
Front 8.25-15-14 / rear 8.25-15-14 (pneumatic, solid optional)
Brake Type
Available on request
// Export & Documents
MOQ
1 unit
Lead Time
15-30 days
Packing Method
Available on request
Container Loading Quantity
Available on request
Warranty
12 months
Certificate
Available on request
Manual
Available on request
Spare Parts List
Available on request

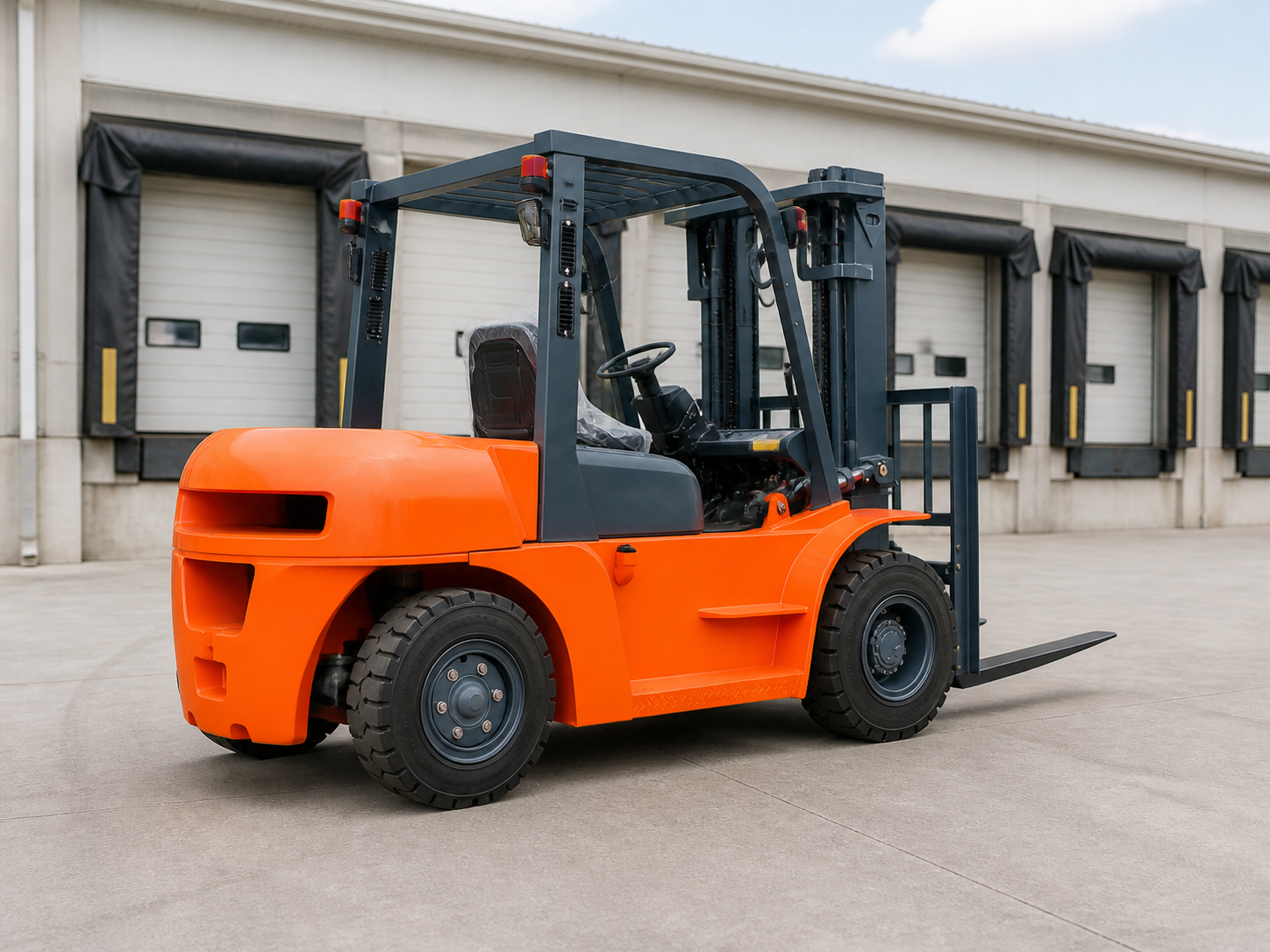

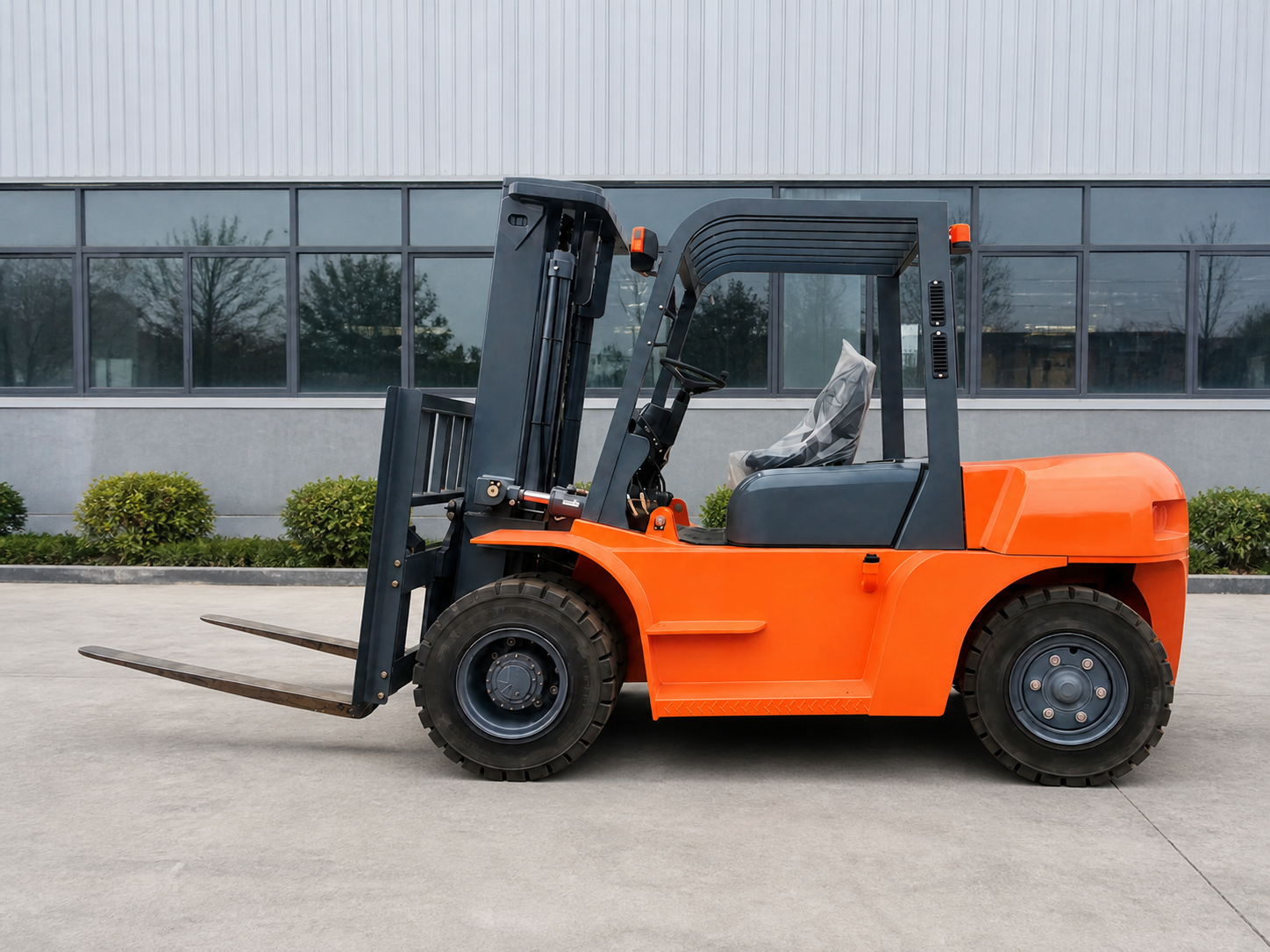

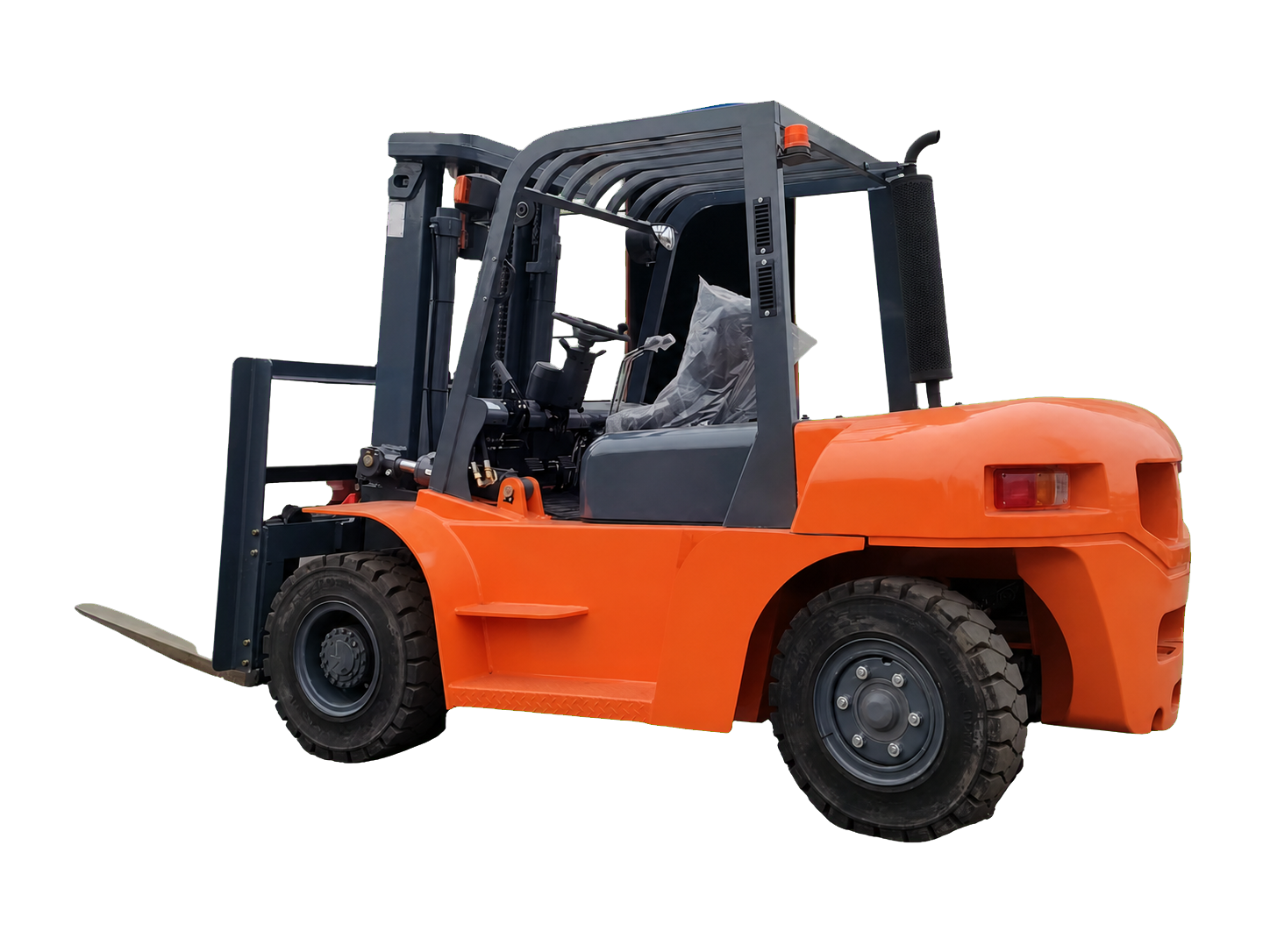

Product Gallery
