Capacity, Load Centre and Site Fit
Choose this model only after checking the actual load against its rated capacity at the 500 mm load centre.
- Send maximum load weight and dimensions.
- Confirm ground or floor capacity and gradients.
- Check turning space with the load included.
Mast, Forks and Residual Capacity
Higher lift heights, long loads and attachments can reduce usable capacity. The final configuration requires a residual-capacity review.
- State lift height and lowered mast clearance.
- Provide load centre or centre-of-gravity data.
- Identify fork length and attachment requirements.
Battery, Charger and Duty Cycle
The source configuration uses an 18 kW AC drive and 80V / 400Ah lead-acid battery. Match charger input and battery capacity to the actual shift and charging window.
- Provide local voltage, frequency and plug.
- State shift hours and charging windows.
- Confirm battery and charger in the quotation.
Export, Packing and Support
The quotation should identify the complete configuration, packing method, Incoterm, destination port, warranty scope and documents. Keep model and serial information for parts support.
MOQConfirm with configuration
Lead TimeConfirm with configuration
Warranty12 months
CertificateAvailable on request

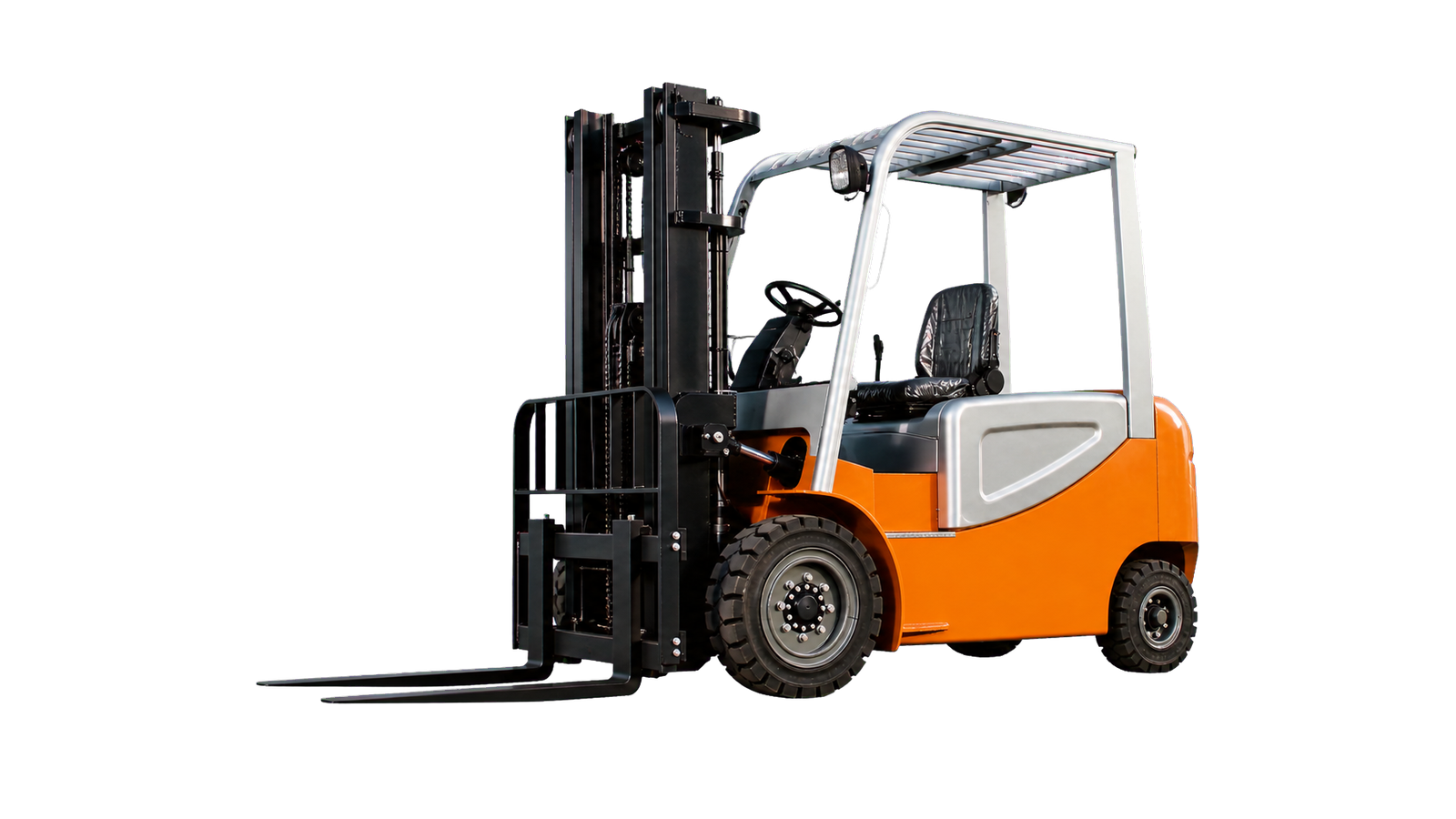

What is the rated capacity of the HLCPD45-B?
The rated capacity is 4,500 kg at a 500 mm load centre. Residual capacity must be checked for long loads, high lifts and attachments.
What battery and drive configuration is listed?
The source configuration uses an 18 kW AC drive and 80V / 400Ah lead-acid battery. Match charger input and battery capacity to the actual shift and charging window.
What site information is required?
Provide load geometry, lift height, working space, floor or ground conditions, gradients, duty cycle and attachment requirements.
Can a higher mast or attachment be quoted?
Compatible options can be reviewed, but their effect on residual capacity and dimensions must be checked.
What are the MOQ and lead time?
MOQ and lead time depend on configuration, attachments, branding and quantity. They are confirmed in the model-specific quotation.
What should the RFQ include?
Include model, load dimensions, load centre, lift height, site conditions, duty cycle, options, quantity and destination port.
