Diesel Forklift · HLCPC20 Series
HLCPC20
Diesel Forklift

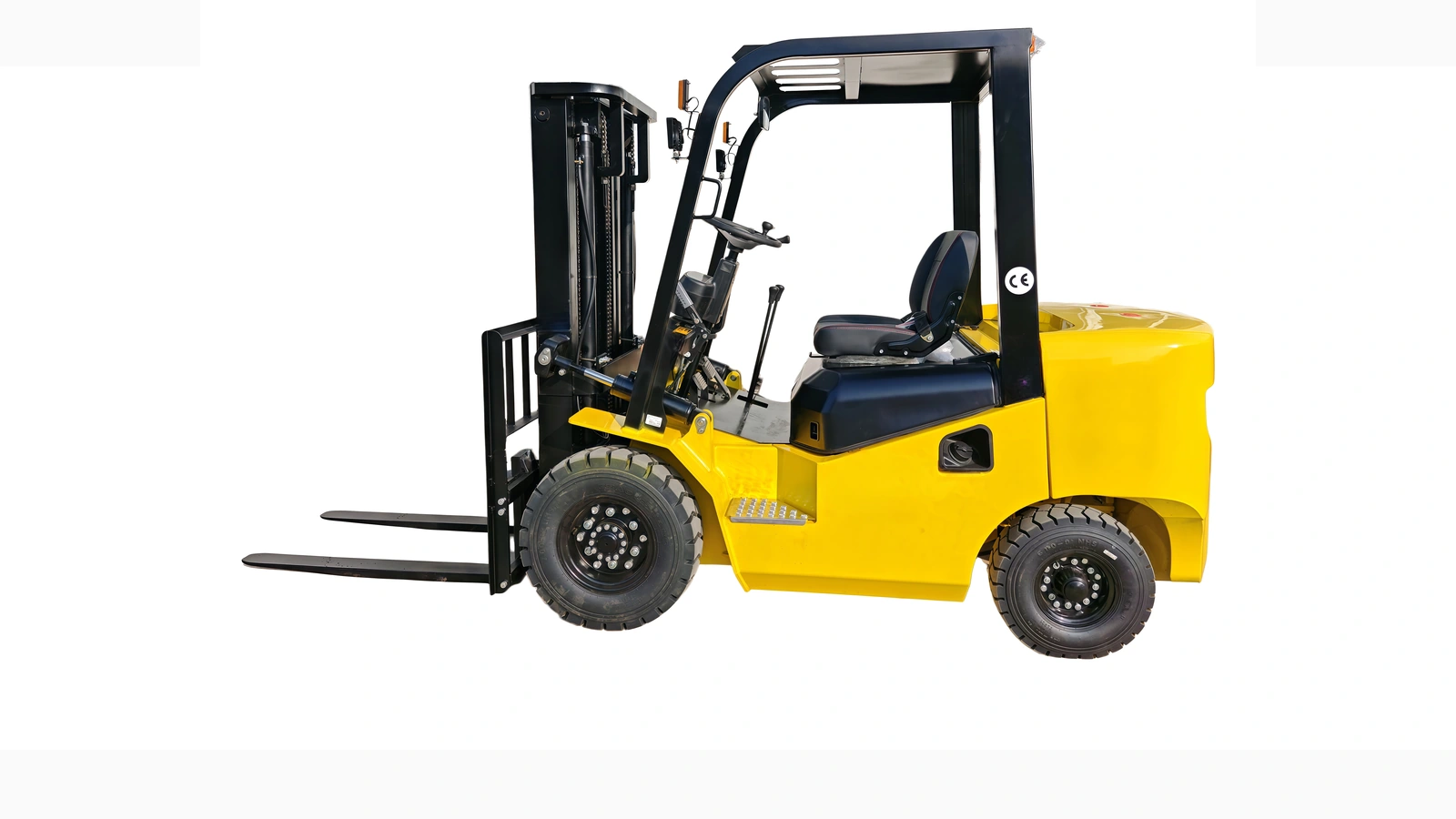

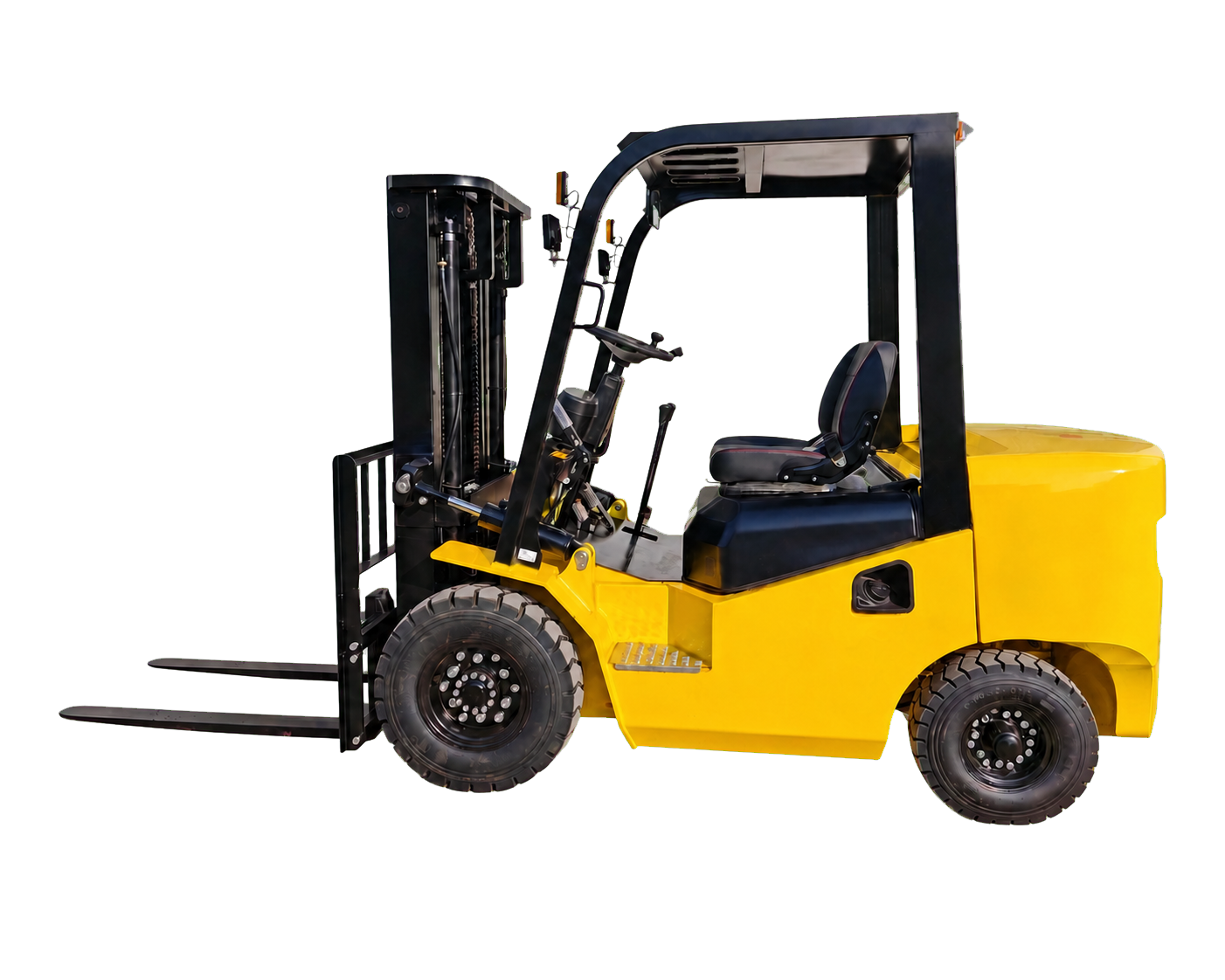

The HLCPC20 is a 2,000 kg (4,400 lb) diesel forklift built for outdoor yards, factories, ports and dealer-stock buyers. It runs a 4-cylinder XINCHAI C490BPG engine — 40 kW, 162 N·m — with a 3 m two-stage mast and a 500 mm load centre. Overall length is 2,640 mm without forks. Service weight is 3,050 kg. Turning radius is 2,450 mm. EPA and EU Stage compliant engines are available, and CE is supplied on request. HONGLI ships it factory-direct from Tai'an, Shandong: a one-unit minimum order, 15–30 day lead times, and a 12-month warranty. Request full specs or a quote below.
HLCPC20 · Product Images
Capacity
2000kg
Power
Diesel
Height
3000 mm
Weight
3050 kg
Technical Specifications
HLCPC20 Specification Table
// Basic Performance
Product Name
HLCPC20 Diesel Forklift
Model
HLCPC20
Category
Diesel Forklift
Rated Capacity
2000 kg (500 mm load centre)
Lift Height
3000 mm
Fork Size
40 × 100 × 1070 mm (T×W×L)
Fork Length
1070 mm
Turning Radius
2450 mm
Gradeability
15% laden / 20% unladen
// Engine & Powertrain
Power Type
Diesel
Engine Model
XINCHAI C490BPG
Engine Power
40 kW
Rated Speed
2650 rpm
Max Torque
162 N·m @ 1800–1900 rpm
Transmission
Mechanical / torque-converter
// Dimensions & Weight
Overall Length
2640 mm (excl. fork)
Overall Width
1160 mm
Overall Height
2095 mm (mast retracted)
Service Weight
3050 kg
// Tyre & Brake
Tire
Front 7.00-12 / rear 6.00-9 (pneumatic, solid optional)
Brake Type
Available on request
// Export & Documents
MOQ
1 unit
Lead Time
15-30 days
Packing Method
Available on request
Container Loading Quantity
Available on request
Warranty
12 months
Certificate
Available on request
Manual
Available on request
Spare Parts List
Available on request

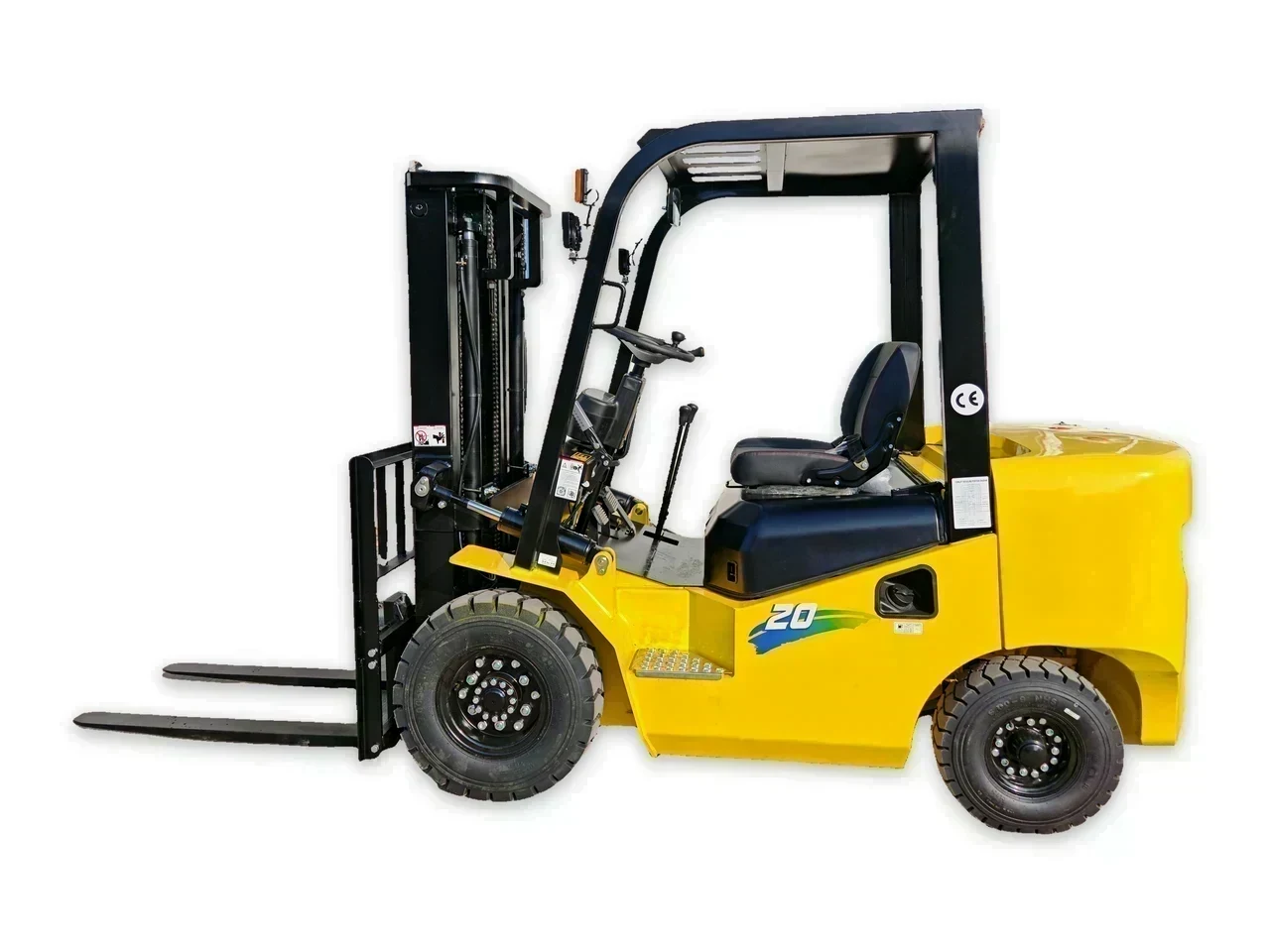

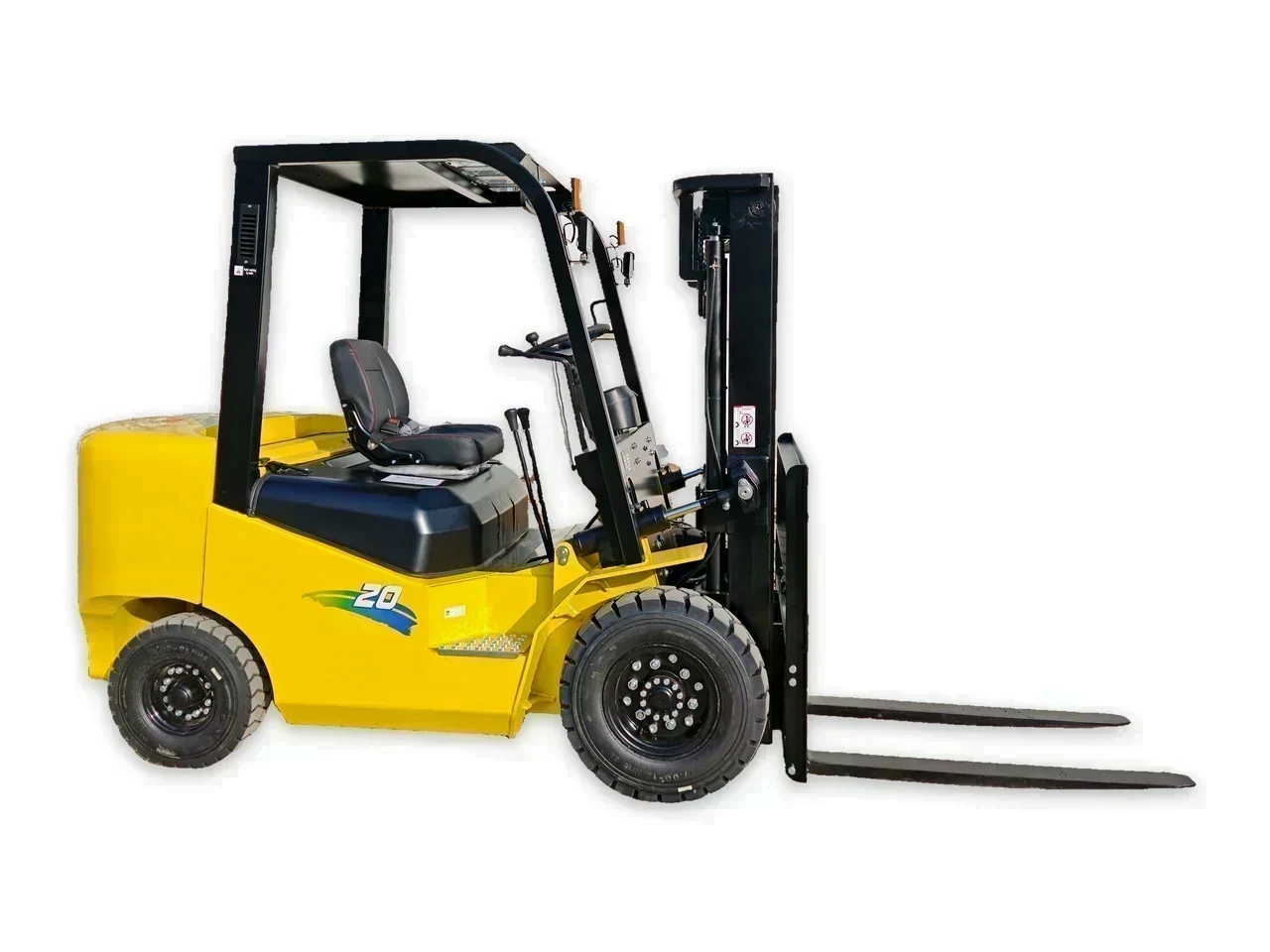

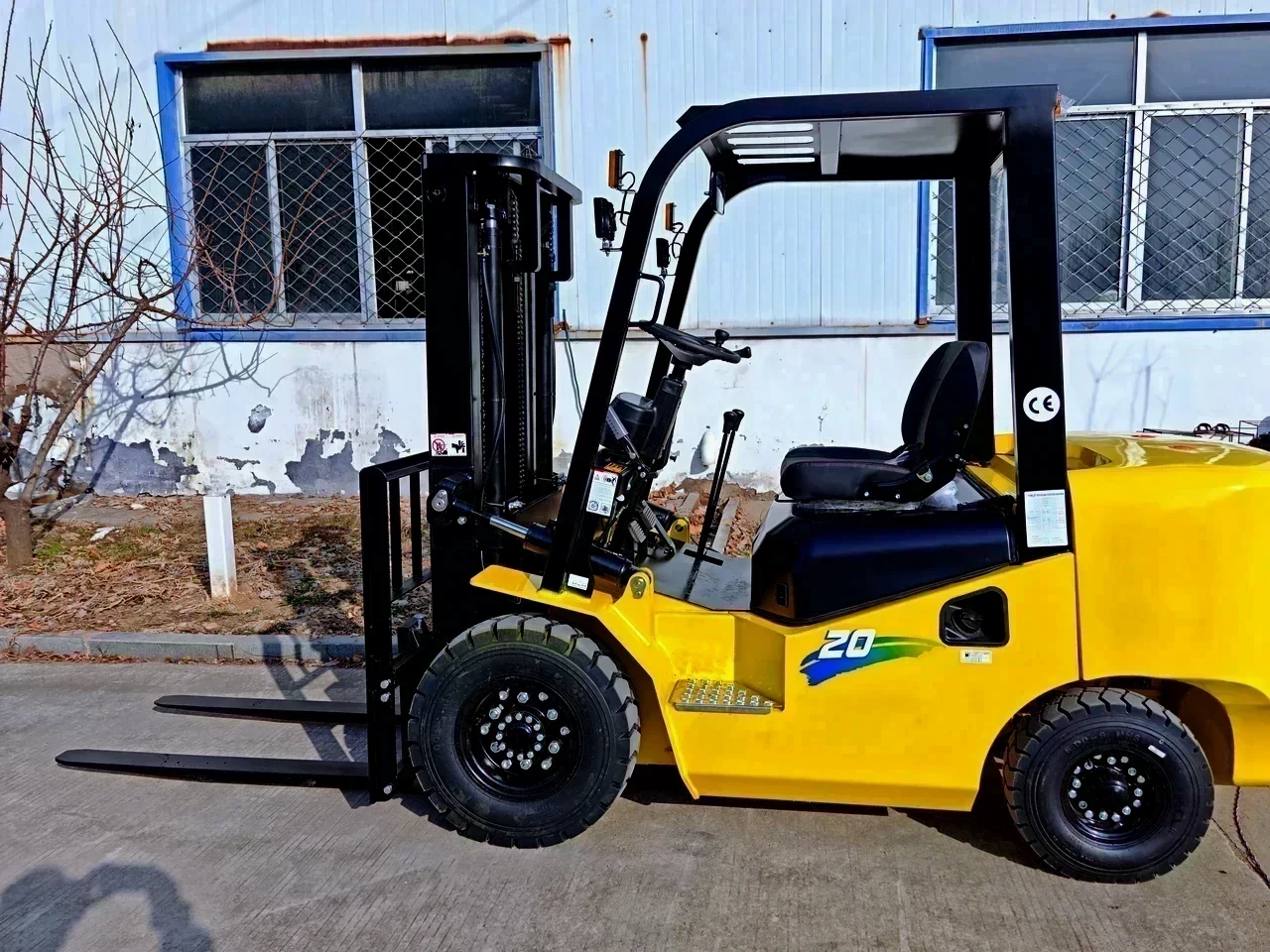

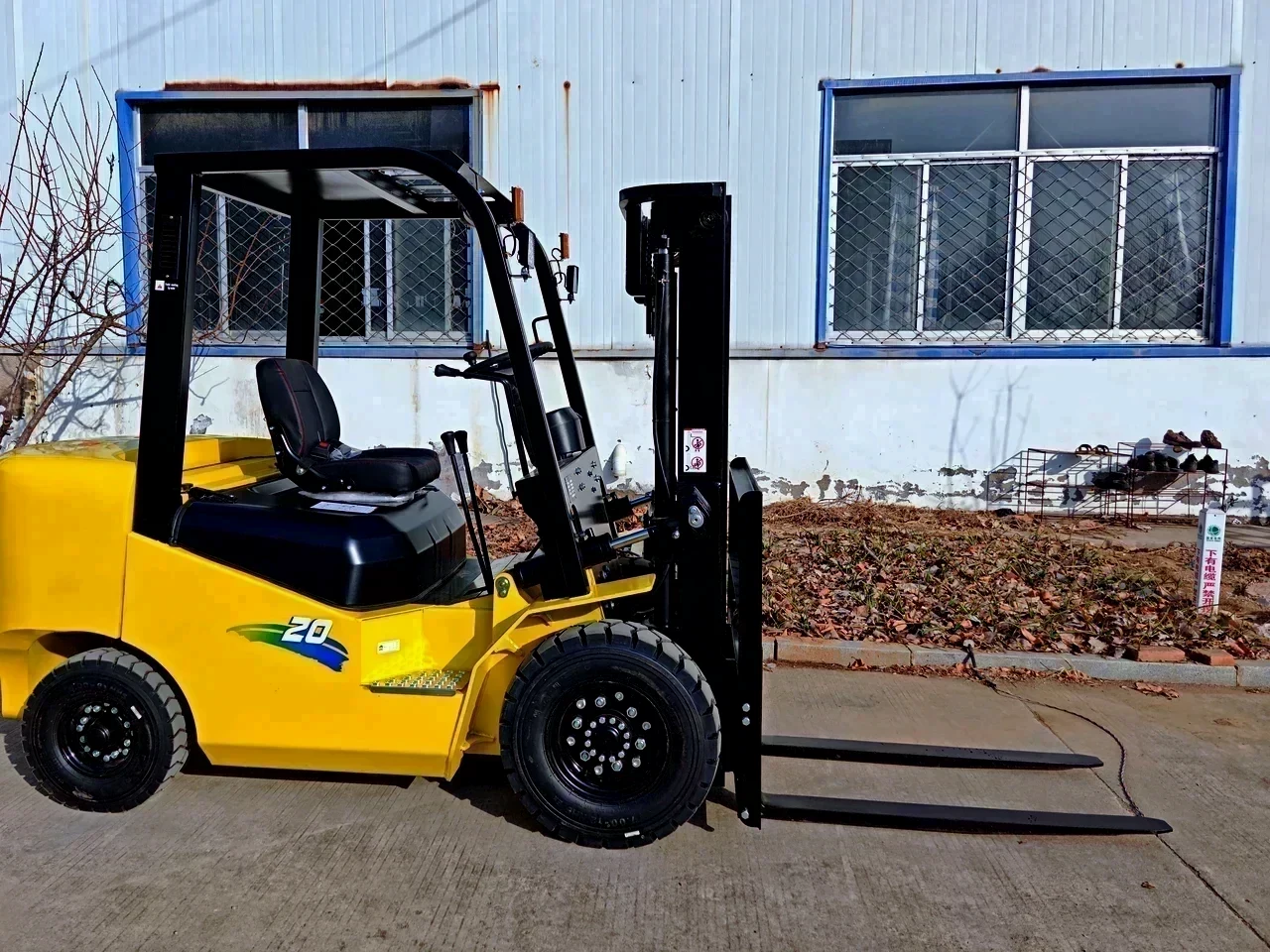

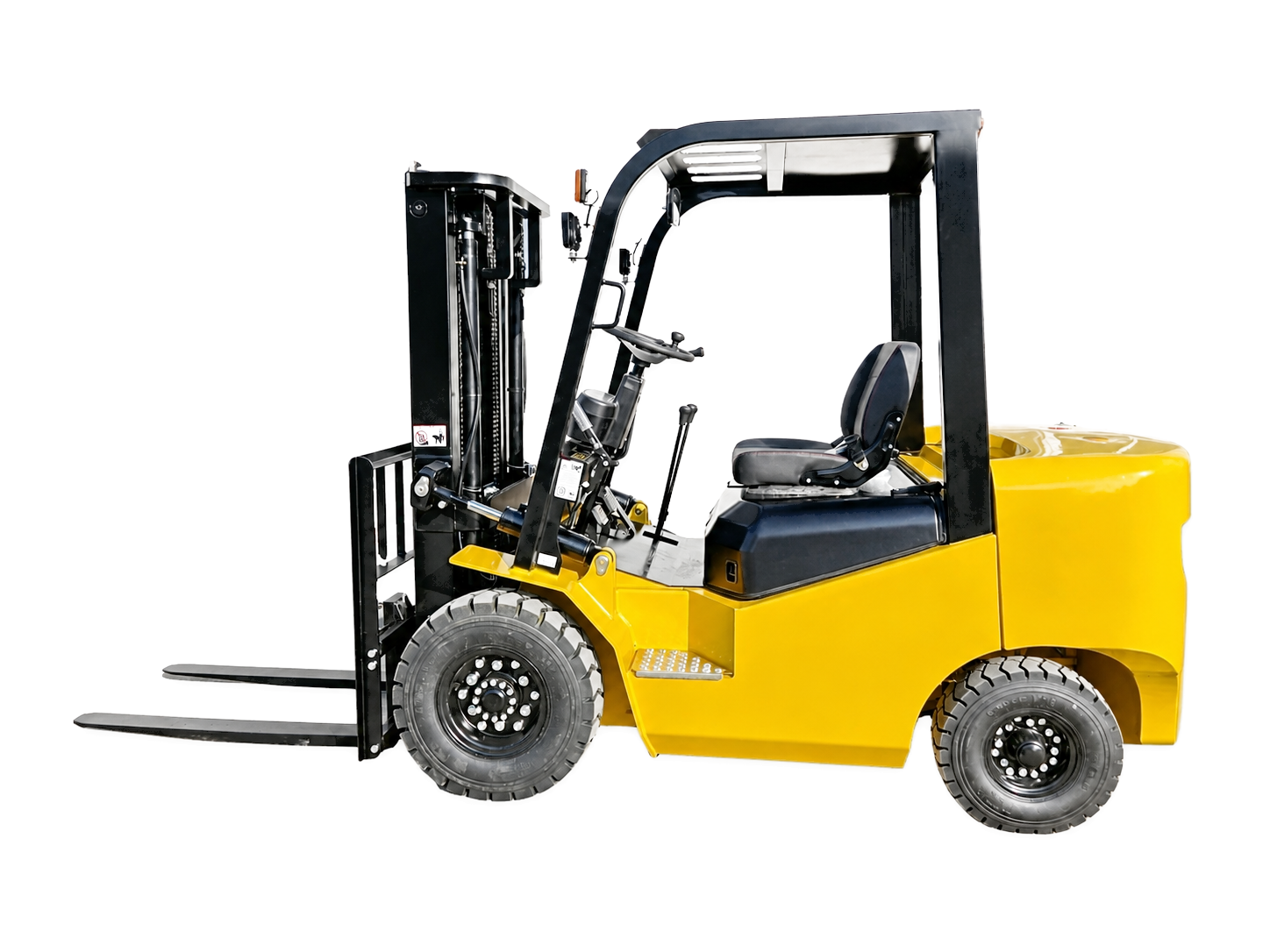

Product Gallery
