When to Choose the 3.5 Ton Diesel Model

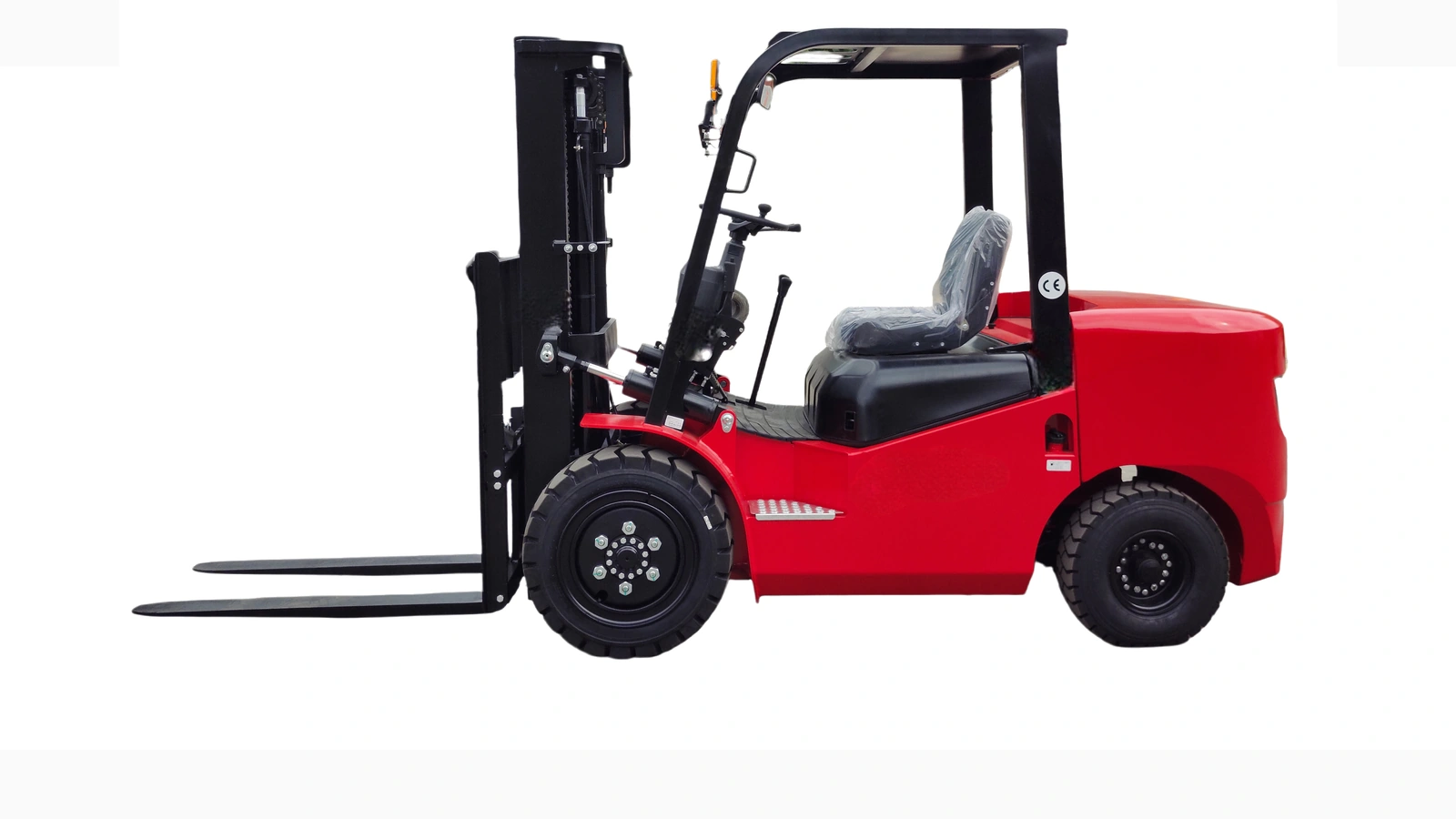

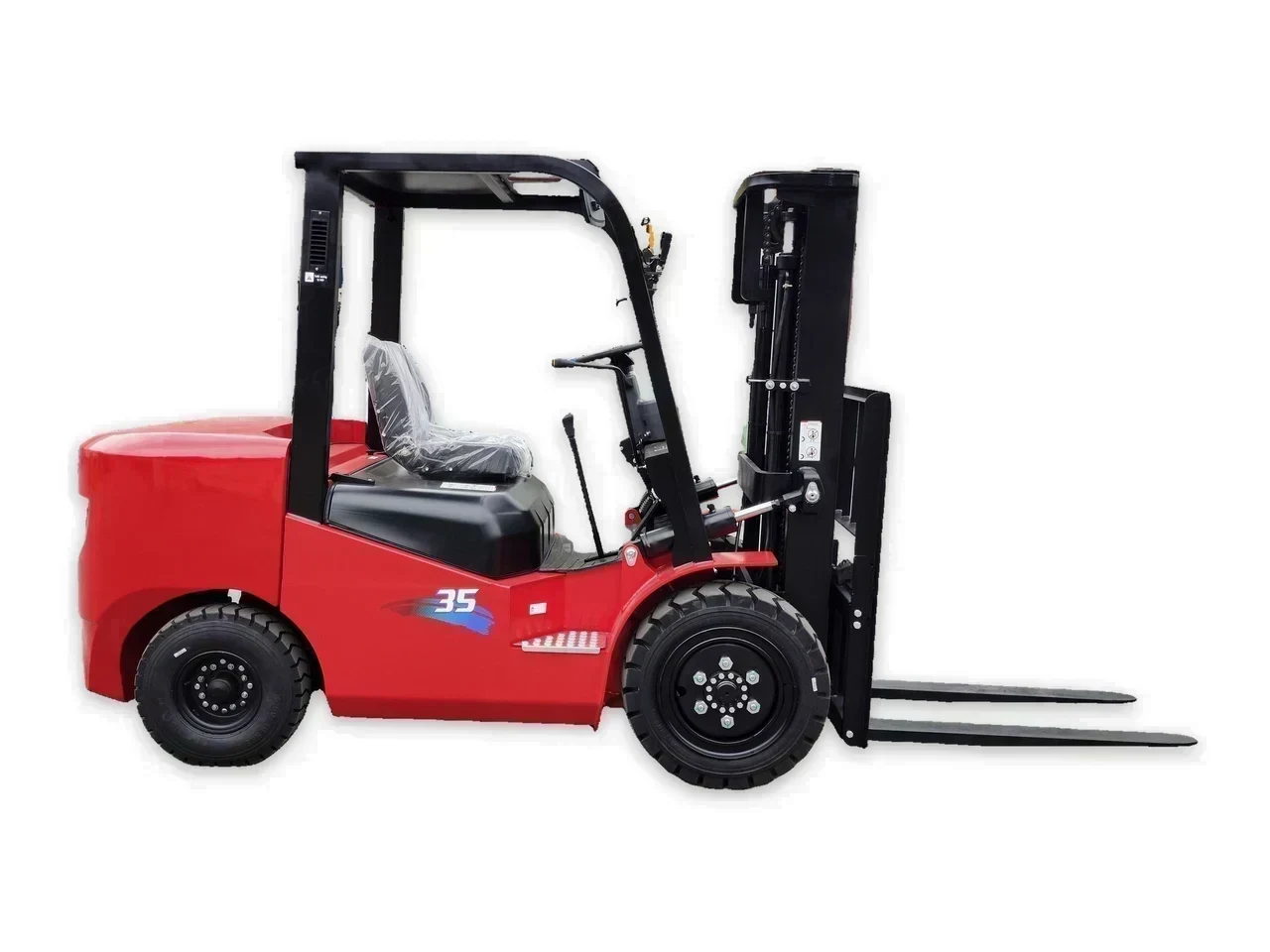

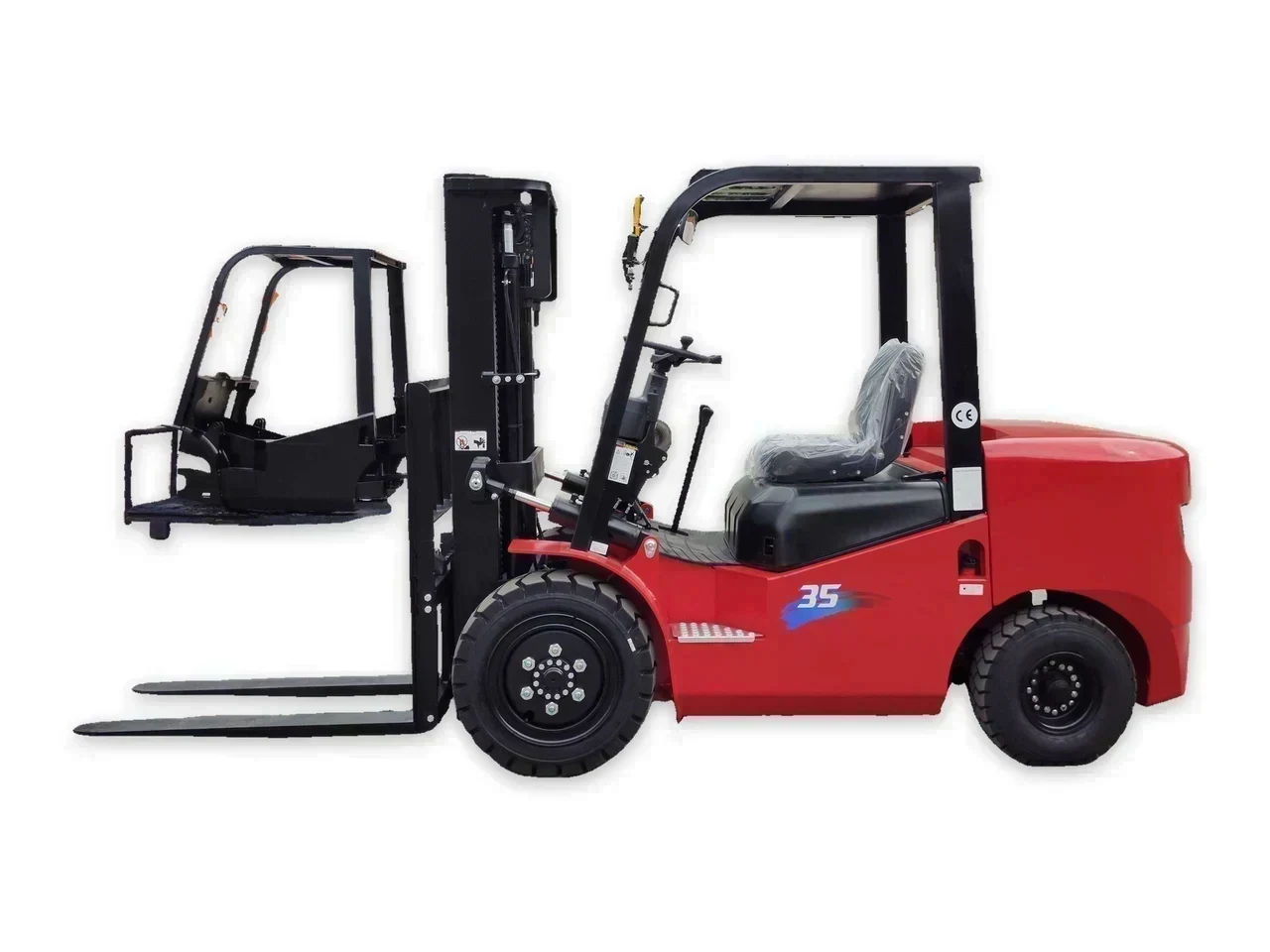

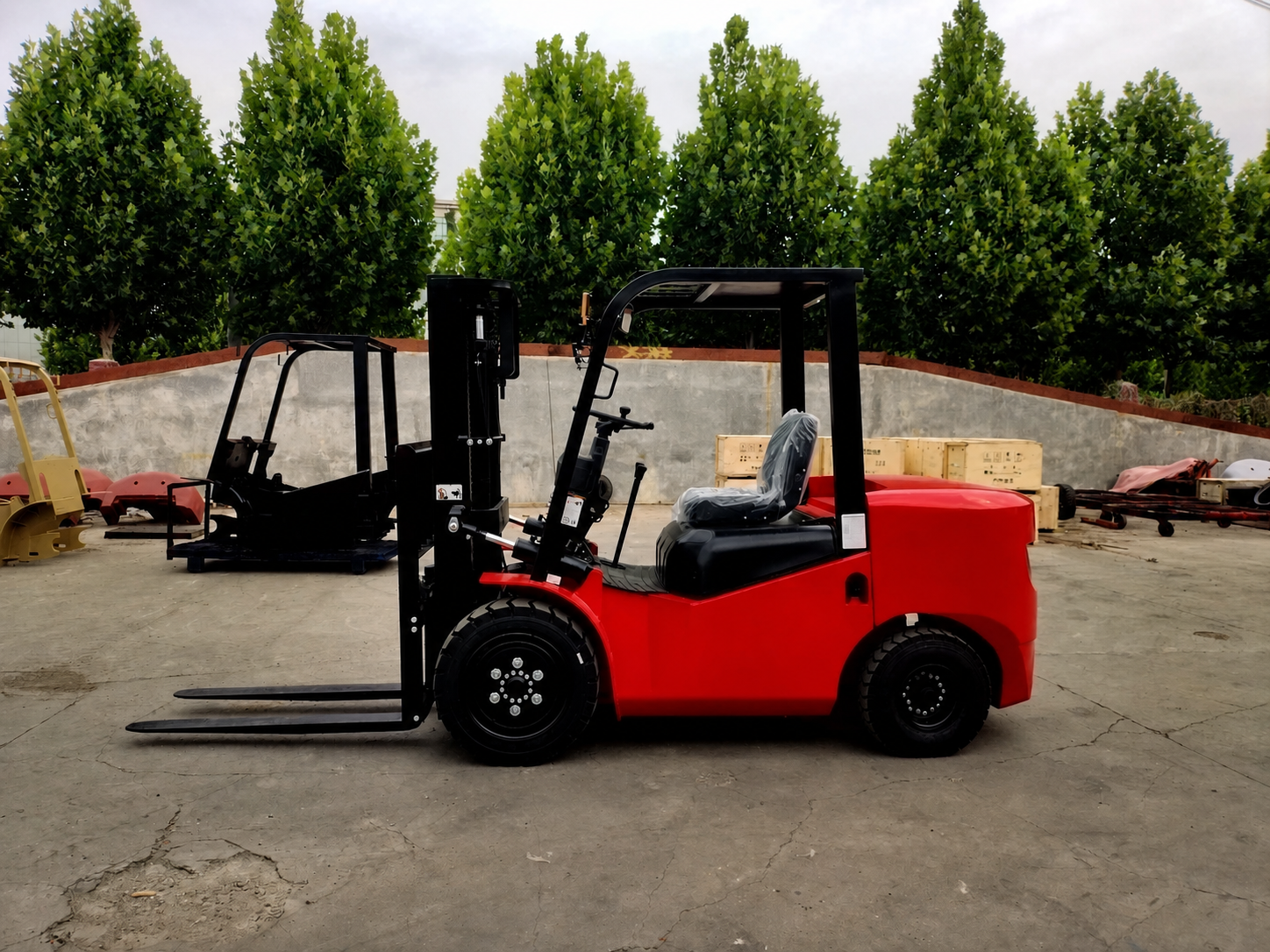

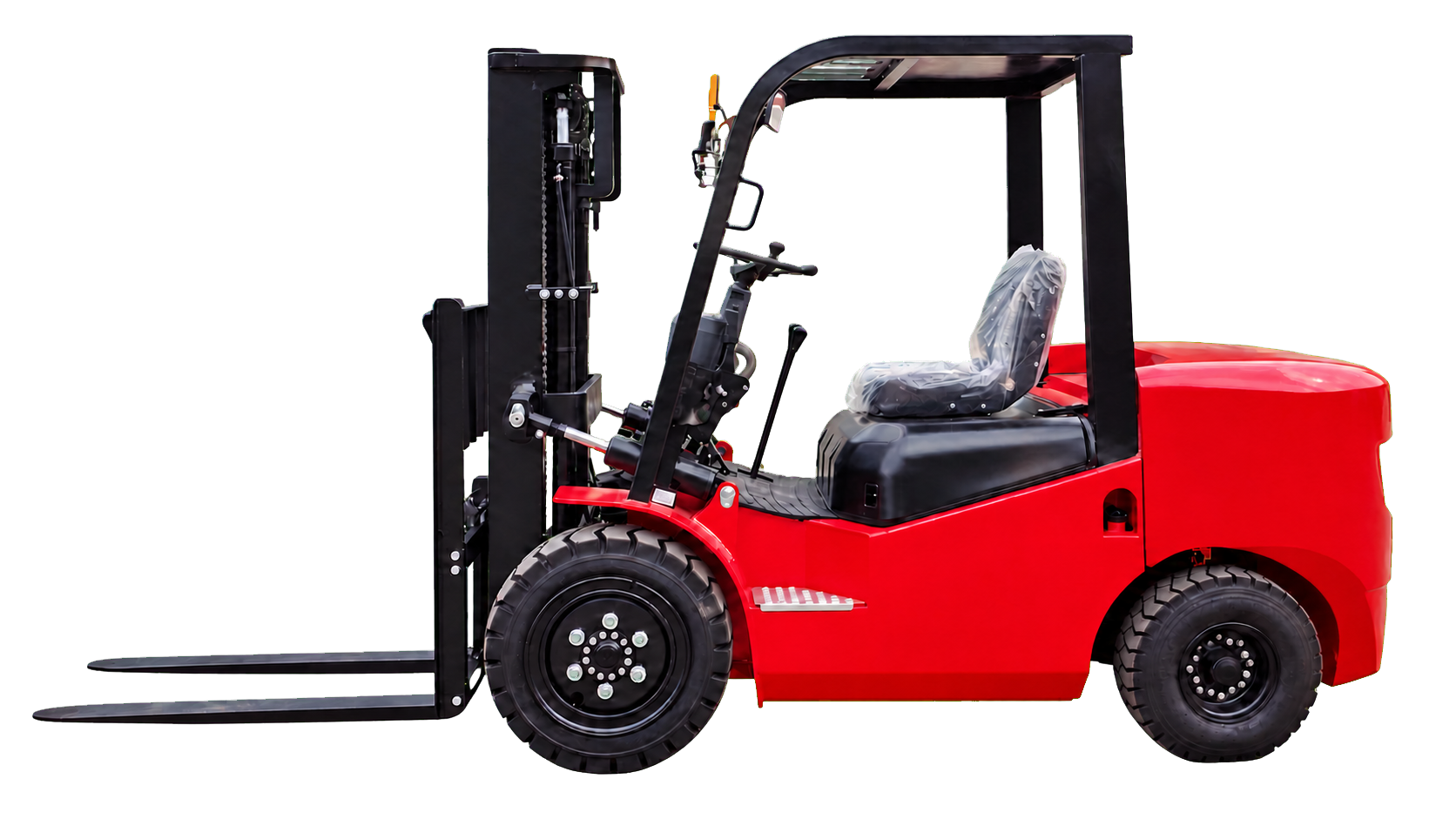

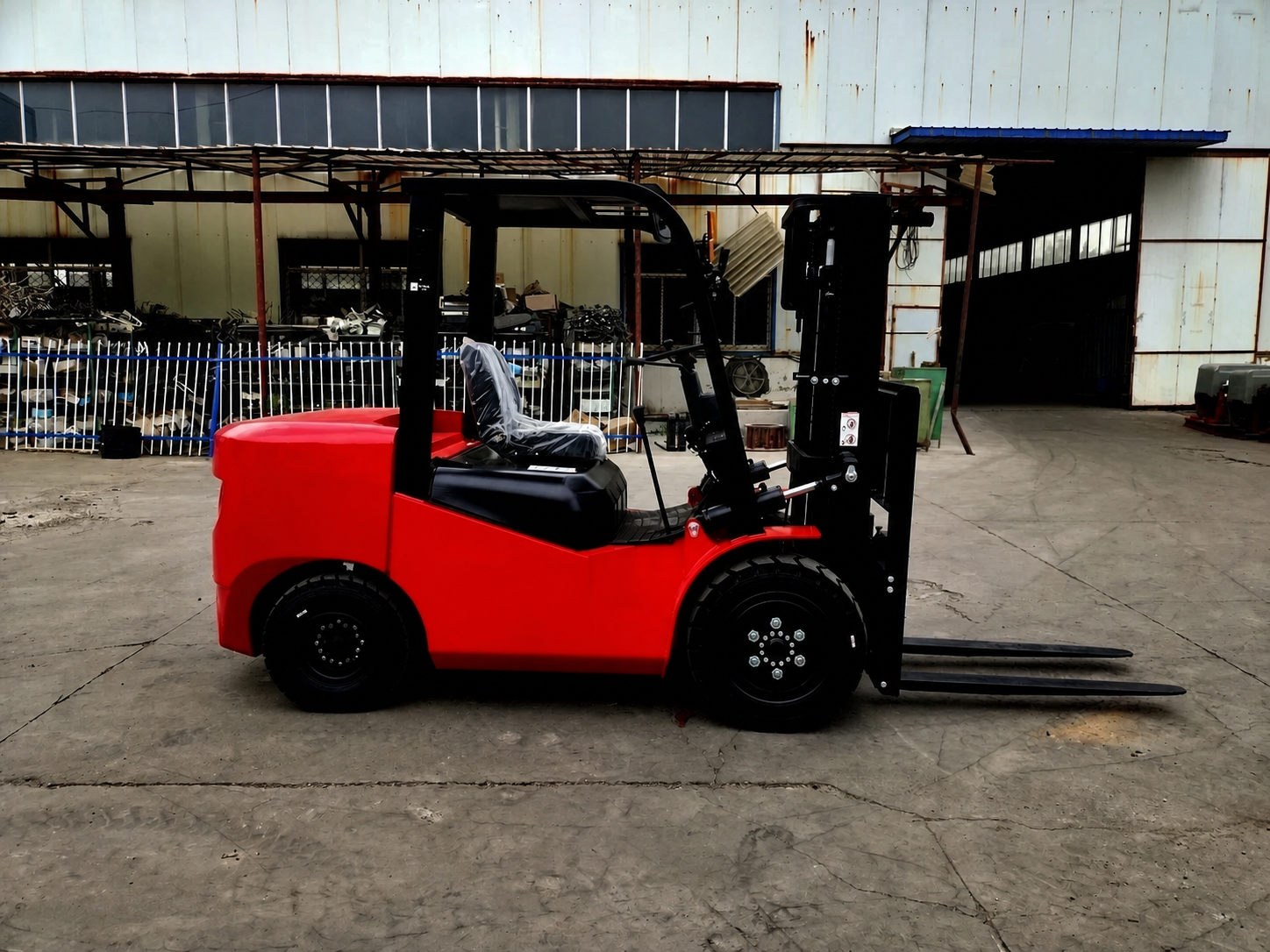

Choose the HLCPC35 when verified loads require more margin than a 3 ton forklift and outdoor travel or rapid refuelling favors diesel power.
- Check maximum load and centre of gravity.
- Compare the 2,540 mm turning radius with working space.
- Describe slopes, travel distance, surface and daily hours.
Residual Capacity and Attachment Check
The 3,500 kg rating applies at a 500 mm load centre. Longer loads, higher masts and attachments can reduce usable capacity.
- Provide maximum load and dimensions.
- State lift height and lowered mast clearance.
- Identify fork length, side-shifter, clamp or other attachments.
Engine, Tyres and Site Conditions
The source specification lists a XINCHAI C490BPG 40 kW engine and pneumatic tyres, with solid tyres optional. Confirm the engine and tyre configuration for the destination and site.
- Provide destination country and required engine standard.
- State puncture risk, debris, mud and pavement condition.
- Confirm cab, lighting and weather-related options.
Export, Packing and Support
The quotation should identify engine, mast, tyres, forks, attachments, packing, Incoterm, destination port, warranty scope and documents. Keep model and serial information for parts support.
MOQConfirm with configuration
Lead TimeConfirm with configuration
Warranty12 months
CertificateAvailable on request
What is the rated capacity of the HLCPC35?
The rated capacity is 3,500 kg at a 500 mm load centre. Usable capacity must be checked for long loads, high lifts and attachments.
What engine does the HLCPC35 use?
The source specification lists the XINCHAI C490BPG diesel engine rated at 40 kW. Confirm destination-specific engine requirements before quotation.
How does it differ from the HLCPC30?
The HLCPC35 provides a 3,500 kg rating and different chassis and tyre dimensions. Choose using actual load geometry, turning space, surface and capacity margin.
Which tyres are available?
The source configuration uses pneumatic tyres, with solid tyres optional. Select tyres according to surface, puncture risk, travel distance and ride requirements.
What are the MOQ and lead time?
MOQ and lead time depend on engine, mast, tyres, attachments, branding and quantity. They are confirmed in the configured quotation.
What information should the RFQ include?
Include load dimensions, load centre, lift height, surface, slope, daily hours, engine standard, tyres, attachments, quantity and destination port.
